DCN.01.035111

DCN.01.035111

Part Number	DCN.01.035111
Manufacturer	Taoglas
Other Part Numbers	931-DCN.01.035111-ND 931-DCN.01.035111 931-DCN01035111 931-DCN01035111-ND

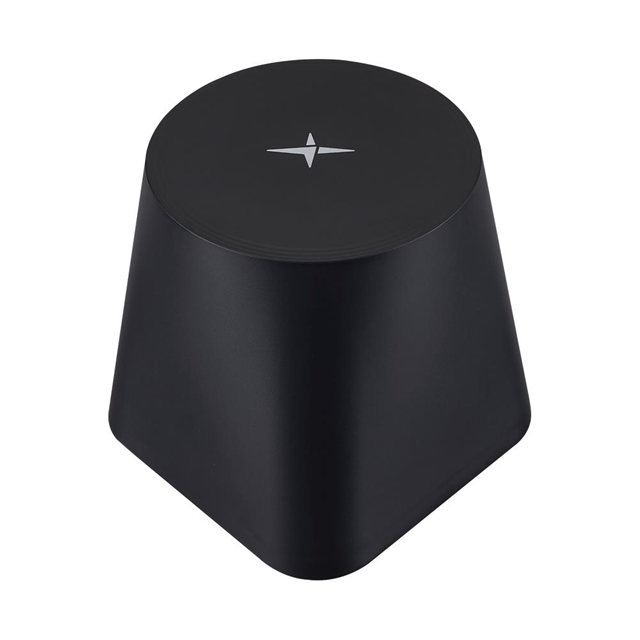

Description	DISCONE EXTERNAL MOUNT WIDEBAND
Detailed Description	440MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz 4G/5G Module RF Antenna 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz 1.2dBi, 1.8dBi, 4.7dBi, 4.9dBi, 5dBi, 6.6dBi, 4.7dBi, 4.8dBi, 6.5dBi SMA Male Pole, Wall Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series		Discone One
Packaging		Bulk
Part Status		Active
Features		Cable - 300mm
Mounting Type		Pole, Wall Mount
Frequency Range		400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Applications		4G/5G
Gain		1.2dBi, 1.8dBi, 4.7dBi, 4.9dBi, 5dBi, 6.6dBi, 4.7dBi, 4.8dBi, 6.5dBi
Termination		SMA Male
Ingress Protection		IP67
Number of Bands		9
Antenna Type		Module
Height (Max)		7.992" (203.00mm)
Frequency Group		Wide Band
Frequency (Center/Band)		440MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz
RF Family/Standard		Cellular
Power - Max		20 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
