DG186BA

DG186BA

Part Number	DG186BA
Manufacturer	Harris Corporation
Other Part Numbers	2156-DG186BA-ND HARHARDG186BA 2156-DG186BA
Description	IC SWITCH SPDTX1 10OHM TO100-10
Detailed Description	1 Circuit IC Switch 2:1 10Ohm TO-100-10

Product Attributes

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Harris Corporation
Series
Packaging		Bulk
Part Status		Active

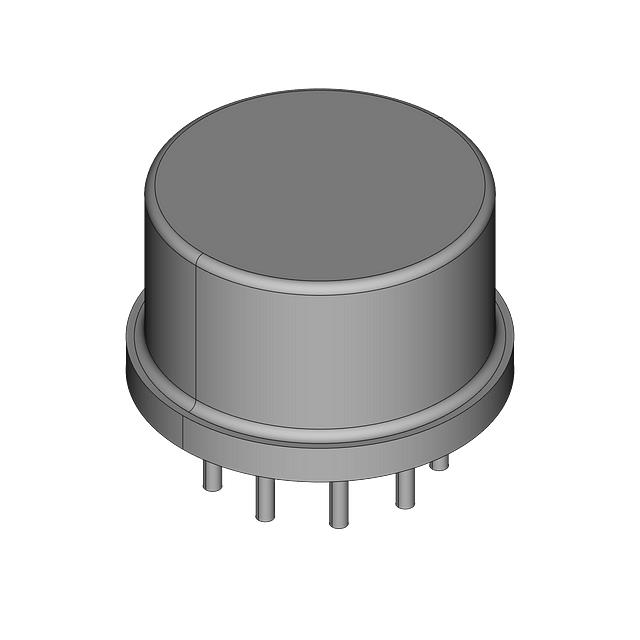

Package / Case		TO-100-10 Metal Can
Mounting Type		Through Hole
Operating Temperature		-20°C ~ 85°C
On-State Resistance (Max)		10Ohm
Supplier Device Package		TO-100-10
Voltage - Supply, Single (V+)		15V
Voltage - Supply, Dual (V±)		±15V
Switch Circuit		SPDT
Multiplexer/Demultiplexer Circuit		2:1
Switch Time (Ton, Toff) (Max)		350ns, 300ns
Channel Capacitance (CS(off), CD(off))		9pF, 6pF
Current - Leakage (IS(off)) (Max)		5nA
Number of Circuits		1

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
