DGSS6-06CC

DGSS6-06CC

Part Number
DGSS6-06CC
Manufacturer Littelfuse / IXYS RF
Other Part Numbers
DGSS6-06CC-ND
Description DIODE ARR SCHOT 600V ISOPLUS220
Detailed Description Diode Array 1 Pair Series Connection 600 V 11A Through Hole ISOPLUS220™
Datasheet Datasheet

Product Attributes

Category
Manufacturer Littelfuse / IXYS RF
Series
Packaging
Tube
Part Status Obsolete

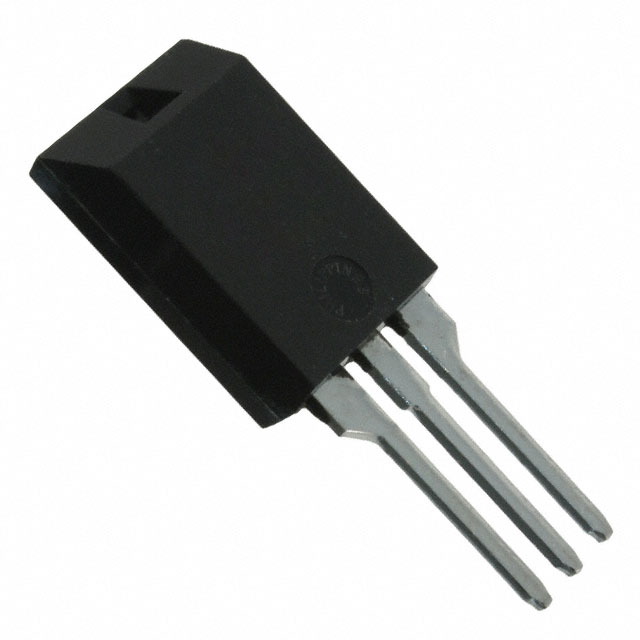

Package / Case ISOPLUS220™
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 20 ns
Technology Schottky
Diode Configuration 1 Pair Series Connection
Current - Average Rectified (Io) (per Diode) 11A
Supplier Device Package ISOPLUS220™
Operating Temperature - Junction -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max) 600 V
Voltage - Forward (Vf) (Max) @ If 2.1 V @ 6 A
Current - Reverse Leakage @ Vr 150 µA @ 600 V

Documents & Media

RESOURCE TYPE LINK
Datasheets DGSS6-06CC
Datasheets OBS 28/Sept/2009

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
