DK 133 - 8 OHM

DK 133 - 8 OHM

Part Number	DK 133 - 8 OHM
Manufacturer	VISATON
Other Part Numbers	2056-DK133-8OHM-ND 2056-DK133-8OHM 50238
Description	SPEAKER 8OHM 10W TOP PORT 106DB
Detailed Description	8 Ohms General Purpose Speaker 10 W 570 Hz ~ 4.4 kHz Top Round
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Product Attributes

Category		Audio Products Speakers
Manufacturer		VISATON
Series
Packaging		Bulk
Part Status		Active
Size / Dimension		5.236" Dia (133.00mm)
Shape		Round
Type		General Purpose
Operating Temperature		-25°C ~ 70°C
Termination		Wire Leads
Ingress Protection		Waterproof
Port Location		Top
Height - Seated (Max)		3.898" (99.00mm)
Impedance		8 Ohms
Power - Max		15 W
Power - Rated		10 W
Frequency Range		570 Hz ~ 4.4 kHz
Efficiency - dBA		106.00
Efficiency - Testing		1W/1M
Efficiency - Type		Sound Pressure Level (SPL)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DK 133 - 8 OHM

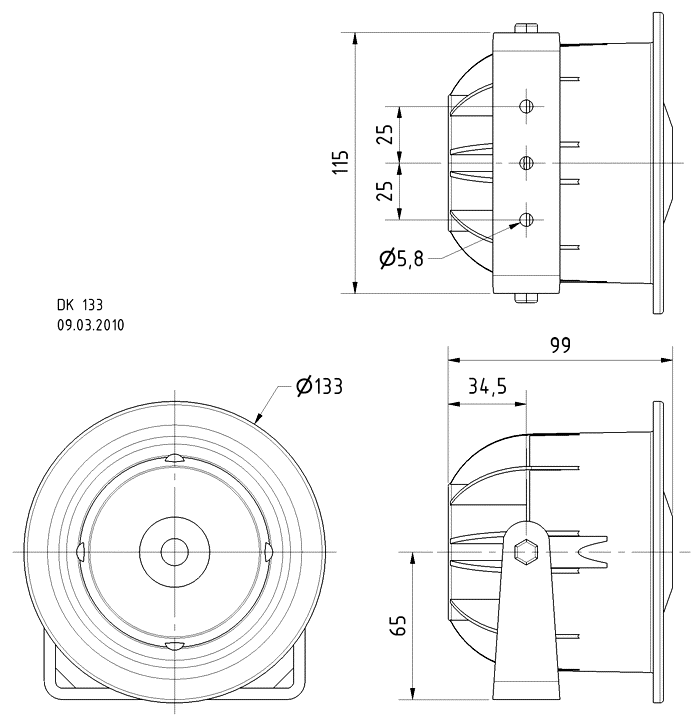

Datasheets		DK 133 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8518.29.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
