DMP4026SFVW-7 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	DMP4026SFVW-7
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	31-DMP4026SFVW-7TR-ND 31-DMP4026SFVW-7TR
Description	MOSFET BVDSS: 31V~40V POWERDI333
Detailed Description	P-Channel 40 V 8.9A (Ta), 49A (Tc) 1.6W (Ta) Surface Mount, Wettable Flank PowerDI3333-8 (SWP) Type UX
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Active

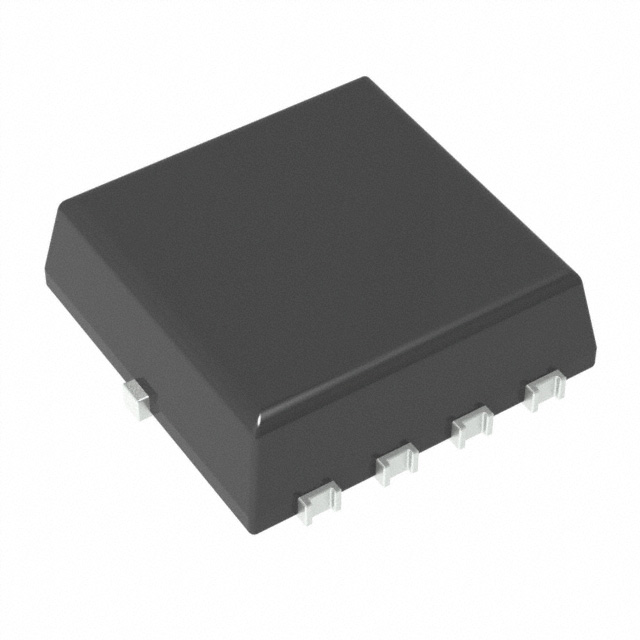

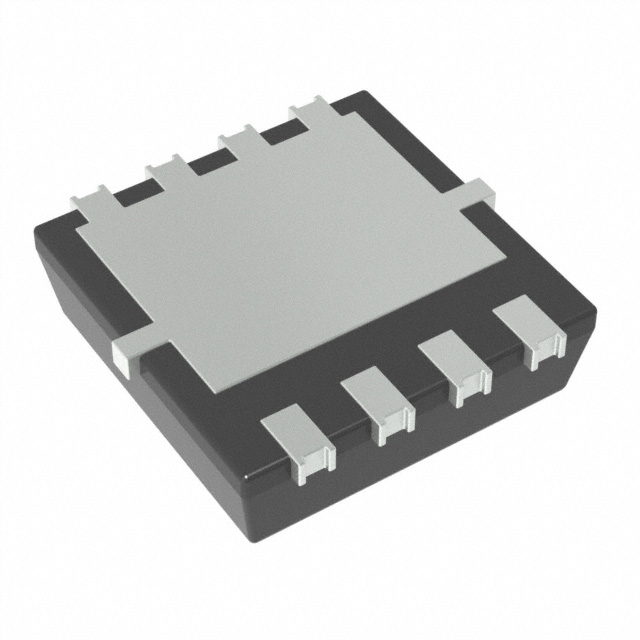

Package / Case		8-PowerVDFN
Mounting Type		Surface Mount, Wettable Flank
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		8.9A (Ta), 49A (Tc)
Rds On (Max) @ Id, Vgs		25mOhm @ 3A, 10V
Power Dissipation (Max)		1.6W (Ta)
Vgs(th) (Max) @ Id		1.8V @ 250µA
Supplier Device Package		PowerDI3333-8 (SWP) Type UX
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		40 V
Gate Charge (Qg) (Max) @ Vgs		45.8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		2064 pF @ 20 V

RESOURCE TYPE		LINK
Datasheets		DMP4026SFVW-7
