DMTH10H009LFGQ-13 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	DMTH10H009LFGQ-13
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	31-DMTH10H009LFGQ-13TR-ND 31-DMTH10H009LFGQ-13TR
Description	MOSFET BVDSS: 61V~100V POWERDI33
Detailed Description	N-Channel 100 V 12A (Ta), 46A (Tc) 2.5W (Ta), 39W (Tc) Surface Mount POWERDI3333-8
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Active

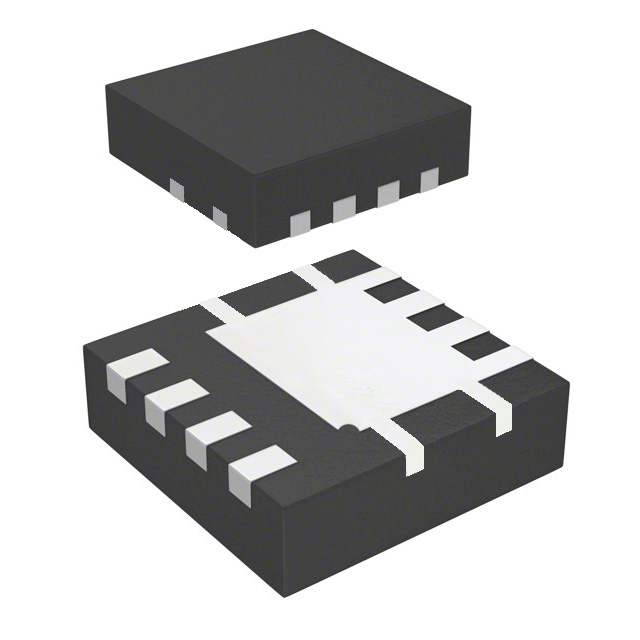

Package / Case		8-PowerVDFN
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		12A (Ta), 46A (Tc)
Rds On (Max) @ Id, Vgs		8.5mOhm @ 20A, 10V
Power Dissipation (Max)		2.5W (Ta), 39W (Tc)
Vgs(th) (Max) @ Id		2.5V @ 250µA
Supplier Device Package		POWERDI3333-8
Grade		Automotive
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		100 V
Gate Charge (Qg) (Max) @ Vgs		41 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		2361 pF @ 50 V
Qualification		AEC-Q101

RESOURCE TYPE		LINK
Datasheets		DMTH10H009LFGQ-13
