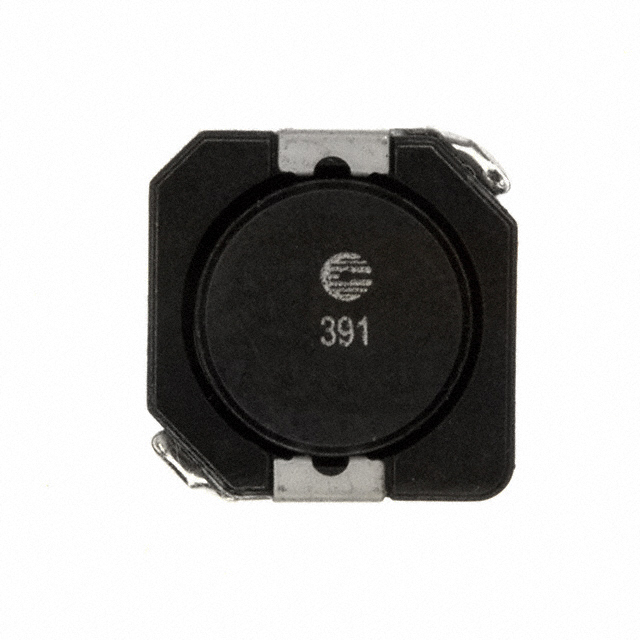

DR1050-391-R

Part Number
DR1050-391-R
Manufacturer PowerStor (Eaton)
Other Part Numbers
283-DR1050-391-RTR-ND
-875-DR1050-391-RTR
283-DR1050-391-RDKR
-875-DR1050-391-RTR-ND
-875-DR1050-391-RCT
283-DR1050-391-RCT
DR1050391R
513-1426-2
513-1426-1
513-1426-6
283-DR1050-391-RTR
513-1426-1-ND
513-1426-6-ND
513-1426-2-ND
Description FIXED IND 390UH 760MA 810MOHM SM
Detailed Description 390 µH Shielded Drum Core, Wirewound Inductor 760 mA 810mOhm Max Nonstandard
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer PowerStor (Eaton)
Series
DR1050
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±30%
Package / Case Nonstandard
Size / Dimension 0.413" L x 0.406" W (10.50mm x 10.30mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 810mOhm Max
Current - Saturation (Isat) 720mA
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.197" (5.00mm)
Inductance 390 µH
Current Rating (Amps) 760 mA

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
