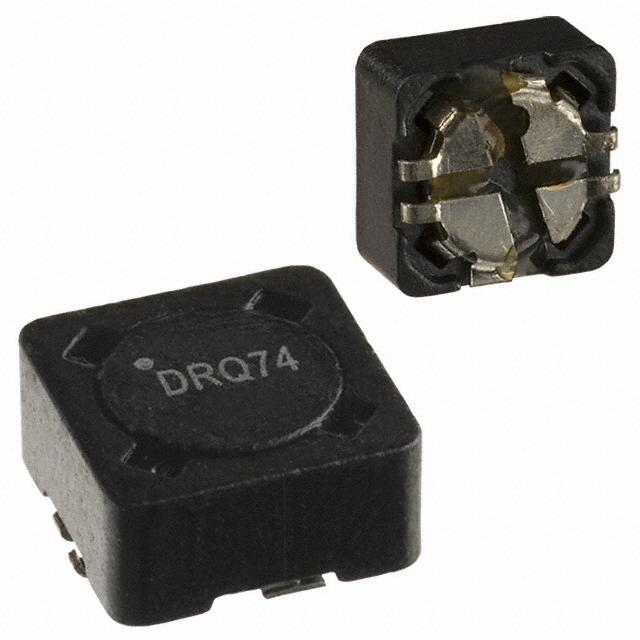

DRQ74-100-R _ Arrays, Signal Transformers_Inductors, Coils, Chokes

Part Number	DRQ74-100-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	513-1267-2-ND 513-1267-1-ND 513-1267-6-ND DRQ74-100-ND DRQ74-100-R-ND 513-1267-2 DRQ74100R 513-1267-1 DRQ74-100 2266-DRQ74-100-RTR 513-1267-6 DRQ74-100R
Description	INDUCT ARRAY 2 COIL 9.882UH SMD
Detailed Description	Shielded 2 Coil Inductor Array 39.53 µH Inductance - Connected in Series 9.882 µH Inductance - Connected in Parallel 48.9mOhm DC Resistance (DCR) - Parallel 2.41 A Nonstandard
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Arrays, Signal Transformers
Manufacturer		PowerStor (Eaton)
Series		DRQ
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.299" L x 0.299" W (7.60mm x 7.60mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-40°C ~ 125°C
Height		0.175" (4.45mm)
Number of Coils		2
Inductance - Connected In Series		39.53 µH
Inductance - Connected In Parallel		9.882 µH
Current Rating - Parallel		2.41 A
Current Rating - Series		1.2 A
Current Saturation - Parallel		3.17 A
Current Saturation - Series		1.58 A
DC Resistance (DCR) - Parallel		48.9mOhm
DC Resistance (DCR) - Series		196mOhm

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
