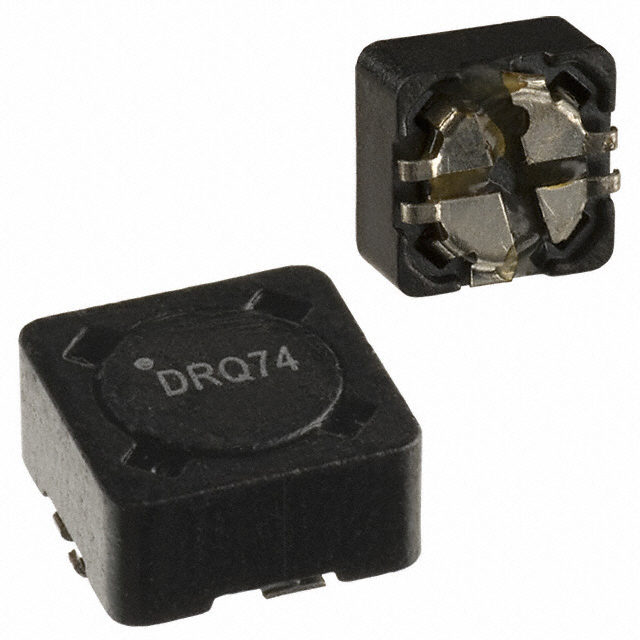

DRQ74-4R7-R _ Arrays, Signal Transformers_Inductors, Coils, Chokes

Part Number	DRQ74-4R7-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	513-1264-2-ND 513-1264-1-ND 513-1264-6-ND DRQ74-4R7-R-ND 513-1264-1 513-1264-2 DRQ74-4R7R DRQ74-4R7-ND 513-1264-6 DRQ74-4R7 DRQ744R7R
Description	INDUCT ARRAY 2 COIL 5.182UH SMD
Detailed Description	Shielded 2 Coil Inductor Array 20.73 µH Inductance - Connected in Series 5.182 µH Inductance - Connected in Parallel 25.4mOhm DC Resistance (DCR) - Parallel 3.34 A Nonstandard
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Arrays, Signal Transformers
Manufacturer		PowerStor (Eaton)
Series		DRQ
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.299" L x 0.299" W (7.60mm x 7.60mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-40°C ~ 125°C
Height		0.175" (4.45mm)
Number of Coils		2
Inductance - Connected In Series		20.73 µH
Inductance - Connected In Parallel		5.182 µH
Current Rating - Parallel		3.34 A
Current Rating - Series		1.67 A
Current Saturation - Parallel		4.37 A
Current Saturation - Series		2.19 A
DC Resistance (DCR) - Parallel		25.4mOhm
DC Resistance (DCR) - Series		102mOhm

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Can ship immediately.
