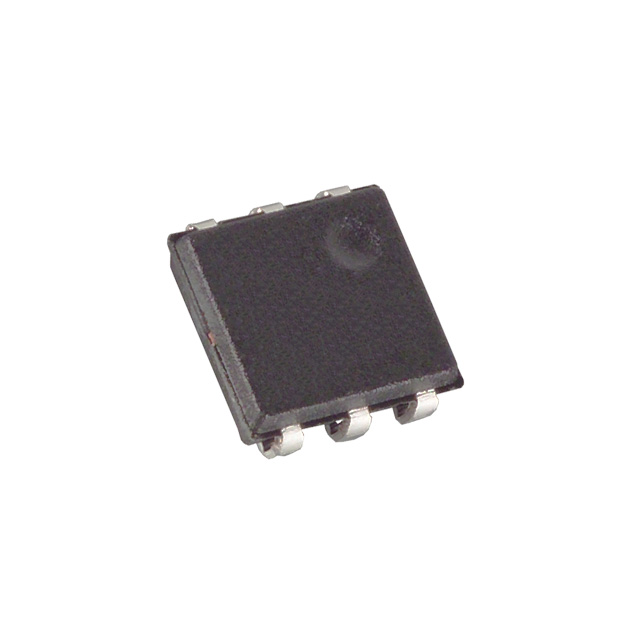

DS2430AP+T&R

DS2430AP+T&R

Part Number	DS2430AP+T&R
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	DS2430AP+T&RTR-ND DS2430AP+T&RCT-ND DS2430AP+T&RDKR-ND DS2430AP+T&RCT DS2430APTR DS2430AP+T&R-ND DS2430AP+T&RTR DS2430AP+T&RDKR
Description	IC EEPROM 256BIT 1-WIRE 6TSOC
Detailed Description	EEPROM Memory IC 256bit 1-Wire® 15 µs 6-TSOC
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Memory Memory
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		6-SMD, J-Lead
Mounting Type		Surface Mount
Memory Size		256bit
Memory Type		Non-Volatile
Operating Temperature		-40°C ~ 85°C (TA)
Technology		EEPROM
Memory Format		EEPROM
Supplier Device Package		6-TSOC
Memory Interface		1-Wire®
Access Time		15 µs
Memory Organization		32 x 8
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DS2430AP+T&R
Datasheets		IEEE 1451.4 Class 1 MMI Smart Transducer Digital Driver Circuit
Datasheets		Transition Guide: Replacing the DS2430A with the DS2431
Datasheets		Understanding Flip-Chip and Chip-Scale Package Technologies and Their Applications
Datasheets		Understanding the DS1WM Synthesizable 1-Wire Bus Master
Datasheets		Material Declaration DS2430AP+T&R
Datasheets		Maxim Integrated REACH
Datasheets		Maxim Integrated RoHS Cert
Datasheets		21-0382 Pkg Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.32.0051
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 12077

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$3.49	$3.49
Total Amount: $3.49

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
4,000	$2.32	$9,280.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$3.49	$3.49
10	$3.16	$31.60
25	$3.10	$77.50
50	$3.08	$154.00
100	$2.76	$276.00
250	$2.75	$687.50
500	$2.65	$1,325.00
1,000	$2.52	$2,520.00
