DS5000-8-16 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	DS5000-8-16
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	2156-DS5000-8-16-ND MAXMAXDS5000-8-16 2156-DS5000-8-16
Description	IC MCU 8BIT 8KB NVSRAM 40EDIP
Detailed Description	8051 DS500x Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) NVSRAM 40-EDIP

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Maxim Integrated / Analog Devices
Series		DS500x
Packaging		Bulk
Part Status		Active

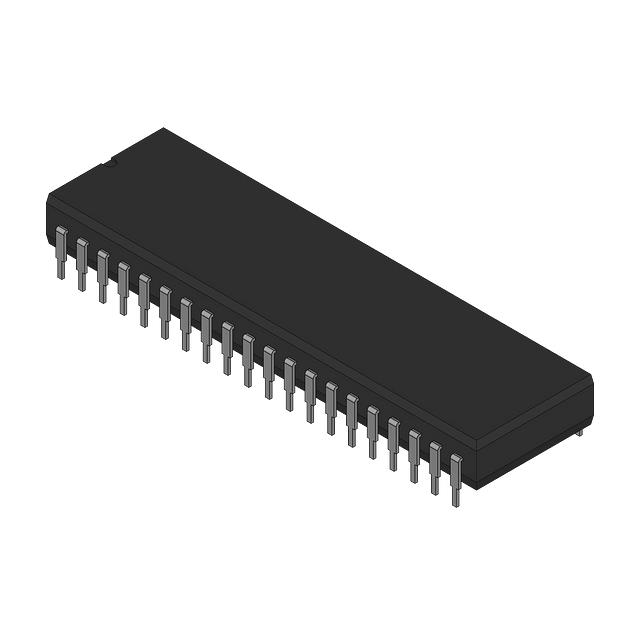

Package / Case		40-DIP Module (0.610", 15.495mm)
Mounting Type		Through Hole
Speed		16MHz
Program Memory Size		8KB (8K x 8)
Operating Temperature		0°C ~ 70°C (TA)
Oscillator Type		External
Program Memory Type		NVSRAM
Core Processor		8051
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		4.75V ~ 5.25V
Connectivity		SIO, UART/USART
Peripherals		Power-Fail Reset, WDT
Supplier Device Package		40-EDIP
Number of I/O		32
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
