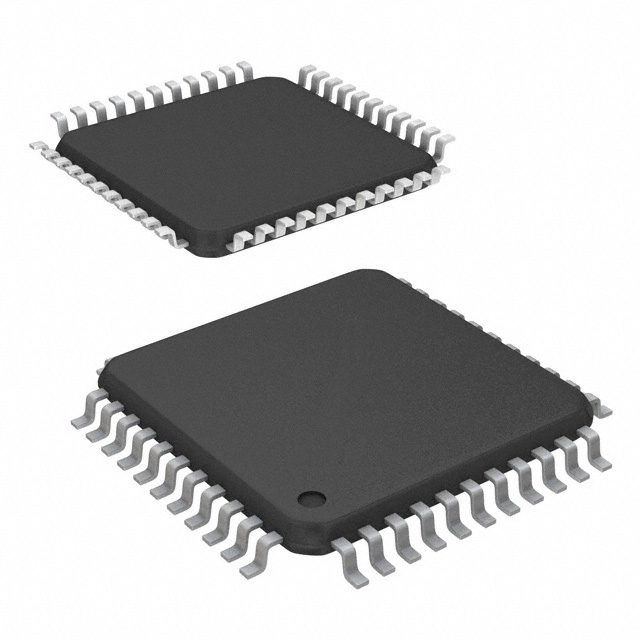

DSPIC30F4013-20I/PT _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	DSPIC30F4013-20I/PT
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	DSPIC30F401320IPT-ND DSPIC30F401320IPT
Description	IC MCU 16BIT 48KB FLASH 44TQFP
Detailed Description	dsPIC dsPIC™ 30F Microcontroller IC 16-Bit 20 MIPS 48KB (16K x 24) FLASH 44-TQFP (10x10)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		dsPIC™ 30F
Packaging		Tray
Part Status		Active
Package / Case		44-TQFP
Mounting Type		Surface Mount
Speed		20 MIPS
Program Memory Size		48KB (16K x 24)
RAM Size		2K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
EEPROM Size		1K x 8
Core Processor		dsPIC
Data Converters		A/D 13x12b
Core Size		16-Bit
Voltage - Supply (Vcc/Vdd)		2.5V ~ 5.5V
Connectivity		CANbus, I2C, SPI, UART/USART
Peripherals		AC'97, Brown-out Detect/Reset, I2S, POR, PWM, WDT
Supplier Device Package		44-TQFP (10x10)
Number of I/O		30
DigiKey Programmable		Verified

RESOURCE TYPE		LINK
Datasheets		DSPIC30F4013-20I/PT
Datasheets		DSPIC30F Flash Programming Specification
Datasheets		dsPIC30F2010
Datasheets		Microchip REACH
Datasheets		Microchip RoHS
Datasheets		TQFP-44L Palladium Coated Copper Wire 17/Dec/2013
Datasheets		Wire 27/Mar/2018
Datasheets		Label and Packing Changes 23/Sep/2015
Datasheets		MBB/Label Chgs 16/Nov/2018
Datasheets		dsPIC30F Ref Manual Errata

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
