EB9A-02-C _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	EB9A-02-C
Manufacturer	Adam Tech
Other Part Numbers	2057-EB9A-02-C-ND 2057-EB9A-02-C
Description	EURO BLOCK 2P

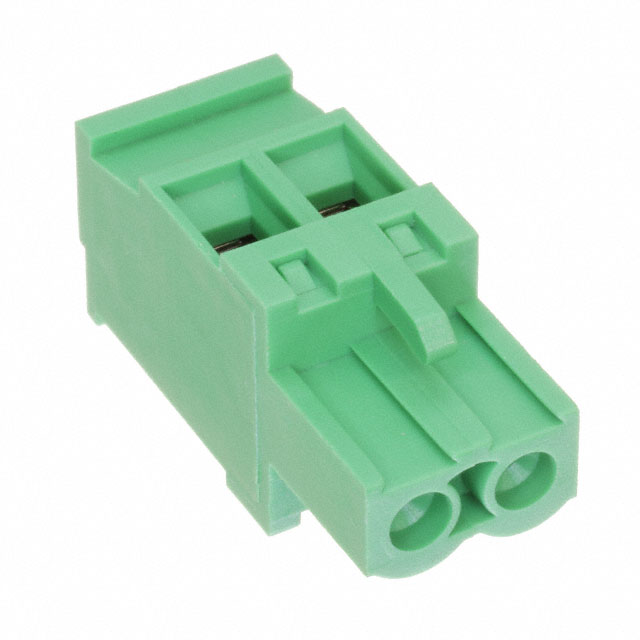

Detailed Description	2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Adam Tech
Series		EB
Packaging		Box
Part Status		Active
Features		Retention Latches (Wire Side)
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		2
Pitch		0.197" (5.00mm)
Screw Size		M3
Type		Plug, Female Sockets
Operating Temperature		-40°C ~ 105°C
Termination Style		Screw - Leaf Spring, Wire Guard
Material Flammability Rating		UL94 V-0
Number of Levels		1
Wire Gauge or Range - AWG		14-28 AWG
Wire Gauge or Range - mm²		2.5mm²
Positions Per Level		2
Contact Material		Brass
Plug Wire Entry		90°
Housing Material		Polyamide (PA66), Nylon 6/6
Torque - Screw		0.5 Nm (4.4 Lb-In)
Contact Mating Finish		Nickel
Wire Strip Length		7-8mm
Insulation Height		1.024" (26.01mm)
Current - UL		15 A
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		EB9A-02-C
Datasheets		Medical Industry Brochure
Datasheets		XCFR2.E333935- Terminal Blocks
Datasheets		XCFR8.E333935- Terminal Blocks Certified for Canada

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
