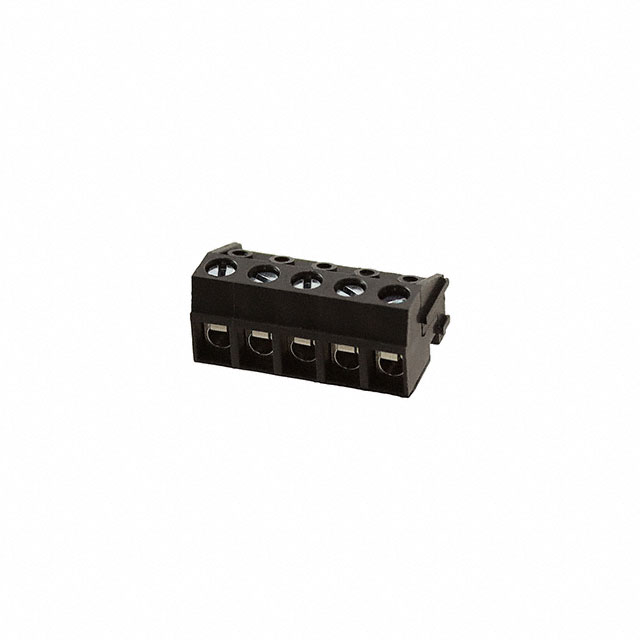

EBJA-05-C-BK _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	EBJA-05-C-BK
Manufacturer	Adam Tech
Other Part Numbers	2057-EBJA-05-C-BK-ND 2057-EBJA-05-C-BK
Description	EURO BLOCK, 5 POSITION
Detailed Description	5 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Adam Tech
Series		EB
Packaging		Box
Part Status		Active
Features		Interlocking (Side)
Color		Black
Mounting Type		Free Hanging (In-Line)
Number of Positions		5
Pitch		0.197" (5.00mm)
Screw Size		M2.5
Type		Plug for Unshrouded Header
Operating Temperature		-40°C ~ 105°C
Termination Style		Screw - Rising Cage Clamp
Material Flammability Rating		UL94 V-0
Number of Levels		1
Wire Gauge or Range - AWG		16-28 AWG
Positions Per Level		5
Contact Material		Phosphor Bronze
Plug Wire Entry		180°
Housing Material		Polybutylene Terephthalate (PBT)
Torque - Screw		0.4 Nm (3.5 Lb-In)
Contact Mating Finish		Nickel
Wire Strip Length		4.5-5mm
Insulation Height		0.433" (11.00mm)
Current - UL		10 A
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		EBJA-05-C-BK
Datasheets		Medical Industry Brochure
Datasheets		XCFR2.E333935- Terminal Blocks
Datasheets		XCFR8.E333935- Terminal Blocks Certified for Canada

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
