EBM18DRAS _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	EBM18DRAS
Manufacturer	Sullins Connector Solutions
Other Part Numbers	S9677-ND EBM18DRAS-ND S9677
Description	CONN EDGE DUAL FMALE 36POS 0.156

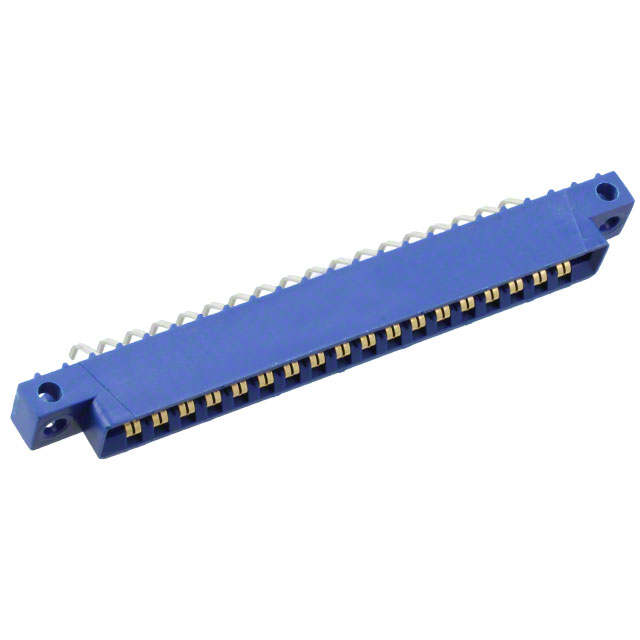

Detailed Description	36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Blue
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		Sullins Connector Solutions
Series
Packaging		Tray
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Blue
Mounting Type		Through Hole, Right Angle
Number of Positions		36
Pitch		0.156" (3.96mm)
Operating Temperature		-65°C ~ 125°C
Read Out		Dual
Contact Type		Full Bellows
Card Type		Non Specified - Dual Edge
Card Thickness		0.062" (1.57mm)
Flange Feature		Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Termination		Solder
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Polybutylene Terephthalate (PBT)
Contact Material		Phosphor Bronze
Number of Positions/Bay/Row		18
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		EBM18DRAS
Datasheets		Sullins Connector Solutions REACH
Datasheets		Sullins Connector Solutions RoHS Cert
Datasheets		xxMxxDRAx Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
