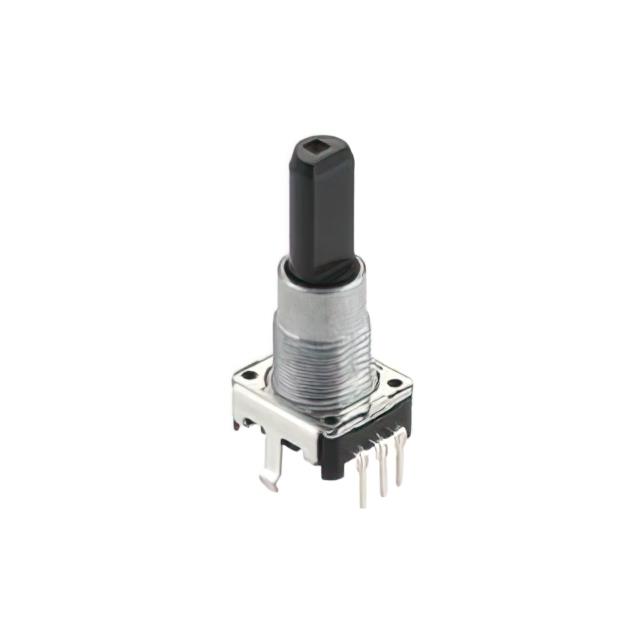

Part Number | EC12E2420803 |
---|---|
Manufacturer | Alps Alpine |
Other Part Numbers | 4809-EC12E2420803-ND 4809-EC12E2420803 |
Description | INSULATED SHAFT ENCODERS |
Detailed Description | Rotary Encoder Incremental 24 Quadrature (Incremental) Vertical |
Manufacturer Standard Lead Time | 18 weeks |
Category | ||
---|---|---|
Manufacturer | Alps Alpine | |
Series | EC12E | |
Packaging | Tray | |
Part Status | Active | |
Output Type | Quadrature (Incremental) | |
Mounting Type | PCB, Through Hole | |
Orientation | Vertical | |
Termination Style | PC Pin | |
Voltage - Supply | 5V | |
Encoder Type | Incremental | |
Detent | Yes | |
Pulses per Revolution | 24 | |
Actuator Type | 12mm Dia Flatted End | |
Built in Switch | No | |
Rotational Life (Cycles Min) | 30K |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8543.70.4500 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $2.95 | $2.95 |
5 | $2.66 | $13.30 |
10 | $2.49 | $24.90 |
25 | $2.28 | $57.00 |
40 | $2.13 | $85.20 |
80 | $2.00 | $160.00 |
230 | $1.83 | $420.90 |
440 | $1.72 | $756.80 |
945 | $1.61 | $1,521.45 |
