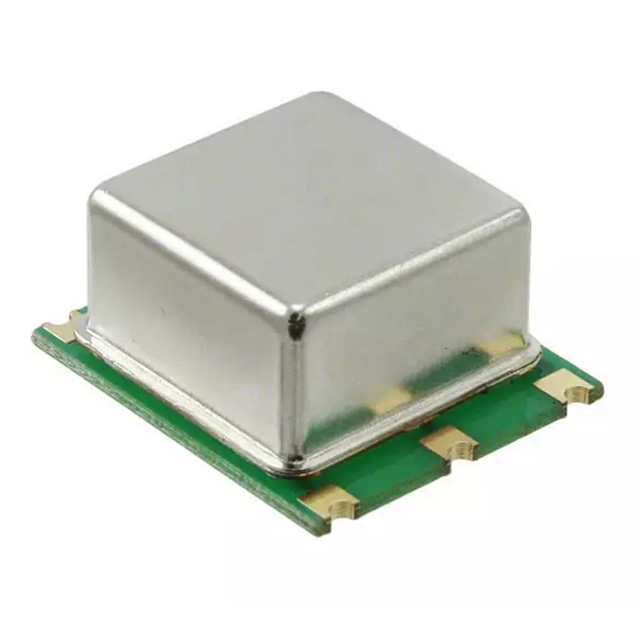

ECOC-2522-40.000-3HC

ECOC-2522-40.000-3HC

Part Number	ECOC-2522-40.000-3HC
Manufacturer	ECS Inc. International
Other Part Numbers	ECOC-2522-40.000-3HC-ND
Description	XTAL OSC OCXO 40.0000MHZ CMOS
Detailed Description	40 MHz OCXO CMOS Oscillator 3.3V 6-SMD, No Lead, 5 Leads
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECOC-2522
Packaging		Tray
Part Status		Active
Package / Case		6-SMD, No Lead, 5 Leads
Size / Dimension		1.000" L x 0.870" W (25.40mm x 22.10mm)
Mounting Type		Surface Mount
Output		CMOS
Type		OCXO
Operating Temperature		-40°C ~ 75°C
Frequency Stability		±30ppb
Voltage - Supply		3.3V
Height - Seated (Max)		0.488" (12.40mm)
Frequency		40 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECOC-2522-40.000-3HC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
