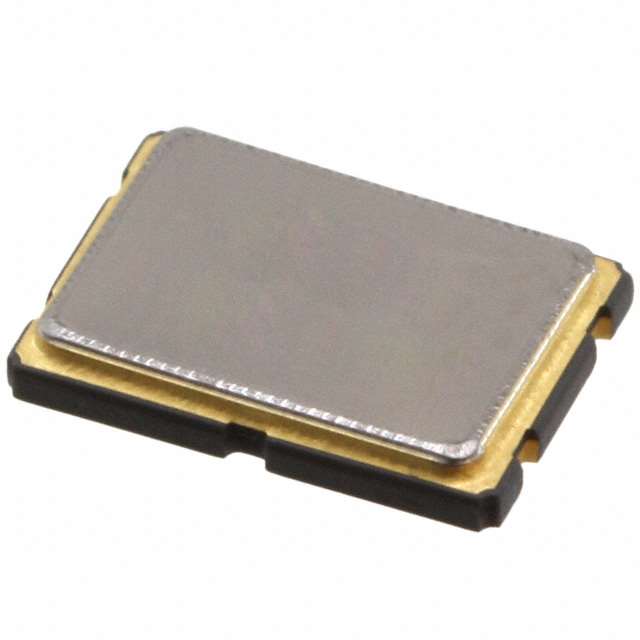

ECS-100-18-20BQ-DS

ECS-100-18-20BQ-DS

Part Number	ECS-100-18-20BQ-DS
Manufacturer	ECS Inc. International
Other Part Numbers	XC1979TR-ND XC1979CT-ND XC1979DKR-ND XC1979TR XC1979CT XC1979DKR
Description	CRYSTAL 10.0000MHZ 18PF SMD
Detailed Description	10 MHz ±30ppm Crystal 18pF 60 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	17 weeks

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		CSM-8Q
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		18pF
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 125°C
Frequency Stability		±100ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Ratings		AEC-Q200
Height - Seated (Max)		0.051" (1.30mm)
ESR (Equivalent Series Resistance)		60 Ohms
Frequency		10 MHz

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1541

Can ship immediately.
