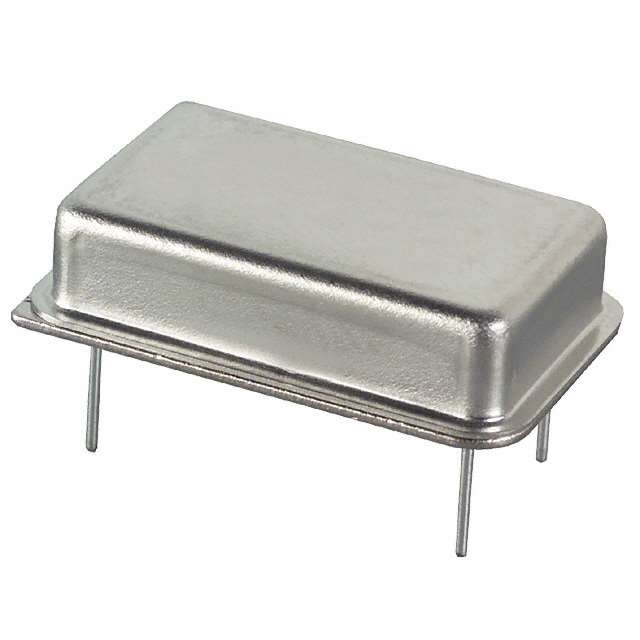

ECS-100A-200

ECS-100A-200

Part Number	ECS-100A-200
Manufacturer	ECS Inc. International
Other Part Numbers	X119-ND ECS-100A-20.000 ECS-200-1-A101A OECS-100A-200 X119 OECS-200-1-A101A ECS100A200
Description	XTAL OSC XO 20.0000MHZ TTL TH
Detailed Description	20 MHz XO (Standard) TTL Oscillator 5V 14-DIP, 4 Leads (Full Size, Metal Can)
Manufacturer Standard Lead Time	33 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-100
Packaging		Bulk
Part Status		Active
Package / Case		14-DIP, 4 Leads (Full Size, Metal Can)
Size / Dimension		0.821" L x 0.520" W (20.86mm x 13.20mm)
Mounting Type		Through Hole
Output		TTL
Type		XO (Standard)
Operating Temperature		0°C ~ 70°C
Frequency Stability		±100ppm
Voltage - Supply		5V
Current - Supply (Max)		30mA
Height - Seated (Max)		0.200" (5.08mm)
Frequency		20 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-100A-200
Datasheets		ECS-100A(X) Series Bottom
Datasheets		ECS-100A(X) Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

In Stock: 654

Can ship immediately.
