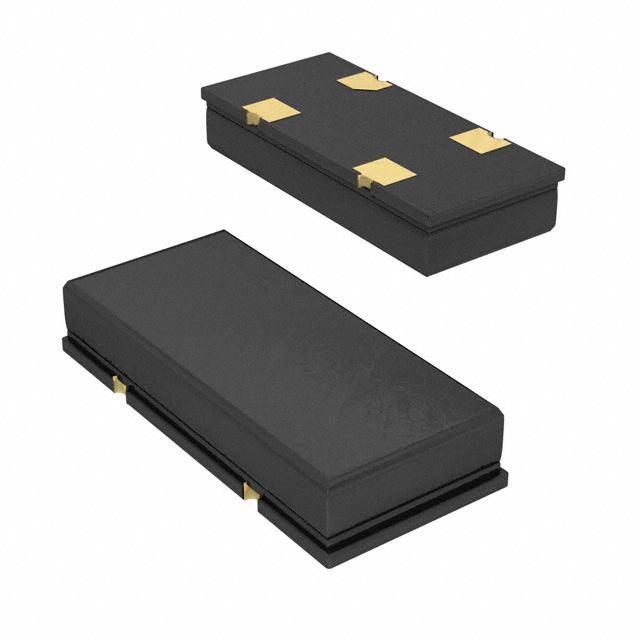

ECS-110.5-S-18-TR

ECS-110.5-S-18-TR

Part Number	ECS-110.5-S-18-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC597TR-ND XC597CT-ND XC597DKR-ND ECS-110.5-S-18 XC597DKR XC597CT XC597TR ECS1105S18TR
Description	CRYSTAL 11.0592MHZ SERIES SMD
Detailed Description	11.0592 MHz ±30ppm Crystal Series 80 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	43 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		CSM-12
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		Series
Size / Dimension		0.465" L x 0.217" W (11.80mm x 5.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±100ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.098" (2.50mm)
ESR (Equivalent Series Resistance)		80 Ohms
Frequency		11.0592 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-110.5-S-18-TR
Datasheets		Crystal Part Numbering Guide
Datasheets		CSM-12 Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 275

Can ship immediately.
