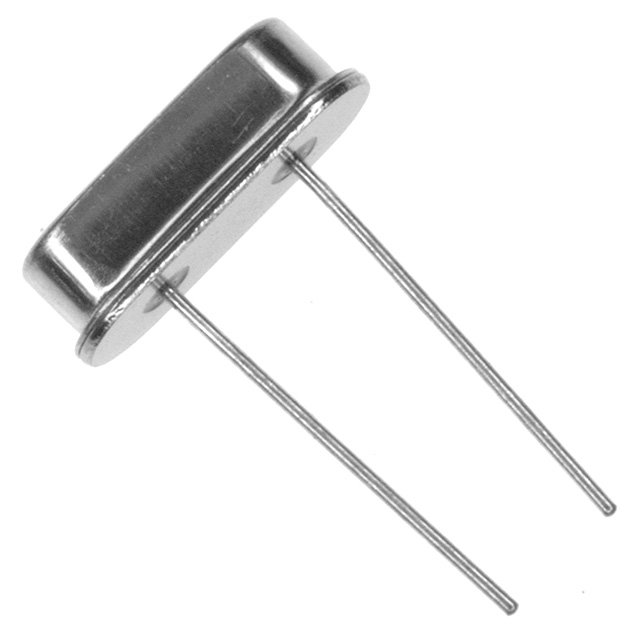

ECS-110.5-S-4X

ECS-110.5-S-4X

Part Number	ECS-110.5-S-4X
Manufacturer	ECS Inc. International
Other Part Numbers	X1064-ND ECS110.5S4X Q4552564BB X1064
Description	CRYSTAL 11.0592MHZ SERIES TH
Detailed Description	11.0592 MHz ±30ppm Crystal Series 60 Ohms HC-49/US
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		HC-49USX
Packaging		Bulk
Part Status		Active
Package / Case		HC-49/US
Load Capacitance		Series
Size / Dimension		0.447" L x 0.183" W (11.35mm x 4.65mm)
Mounting Type		Through Hole
Type		MHz Crystal
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.138" (3.50mm)
ESR (Equivalent Series Resistance)		60 Ohms
Frequency		11.0592 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-110.5-S-4X
Datasheets		Crystal Part Numbering Guide
Datasheets		HC-49US Series Bottom
Datasheets		HC-49US Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1138

Can ship immediately.
