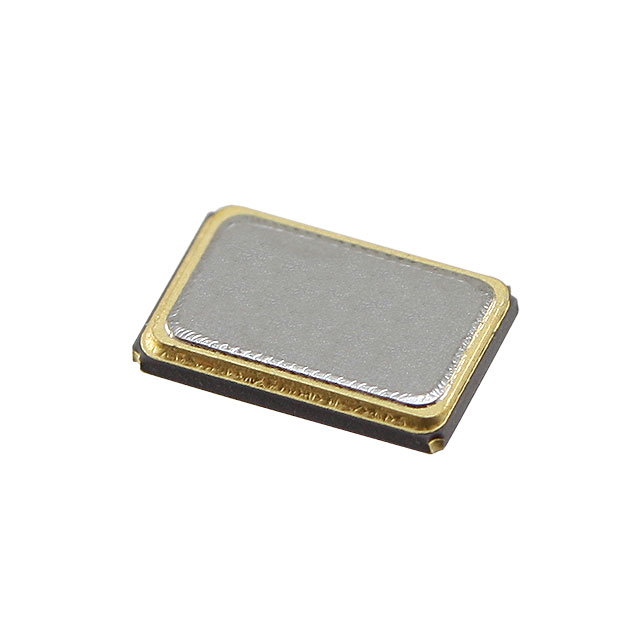

ECS-120-12-30BQ-ADS-TR

ECS-120-12-30BQ-ADS-TR

Part Number	ECS-120-12-30BQ-ADS-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC2677TR-ND XC2677CT-ND XC2677DKR-ND XC2677TR XC2677CT XC2677DKR
Description	CRYSTAL 12.0000MHZ 12PF SMD
Detailed Description	12 MHz ±25ppm Crystal 12pF 80 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		ECX-53BQ
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		12pF
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 125°C
Frequency Stability		±100ppm
Frequency Tolerance		±25ppm
Operating Mode		Fundamental
Ratings		AEC-Q200
Height - Seated (Max)		0.033" (0.85mm)
ESR (Equivalent Series Resistance)		80 Ohms
Frequency		12 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-120-12-30BQ-ADS-TR
Datasheets		Crystal Numbering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1027

Can ship immediately.
