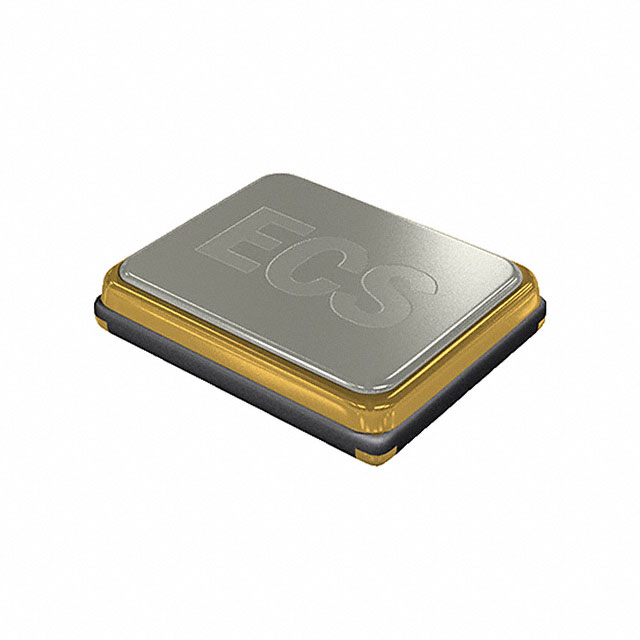

ECS-120-20-33-AEL-TR

ECS-120-20-33-AEL-TR

Part Number	ECS-120-20-33-AEL-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC2911TR-ND XC2911CT-ND XC2911DKR-ND XC2911DKR XC2911TR XC2911CT
Description	CRYSTAL 12.0000MHZ 20PF SMD
Detailed Description	12 MHz ±25ppm Crystal 20pF 100 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		ECX-32
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		20pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±25ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		100 Ohms
Frequency		12 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-120-20-33-AEL-TR
Datasheets		Crystal Numbering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 52814

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.26	$0.26
Total Amount: $0.26

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$0.15	$150.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.26	$0.26
10	$0.22	$2.20
50	$0.19	$9.50
100	$0.17	$17.00
500	$0.16	$80.00
