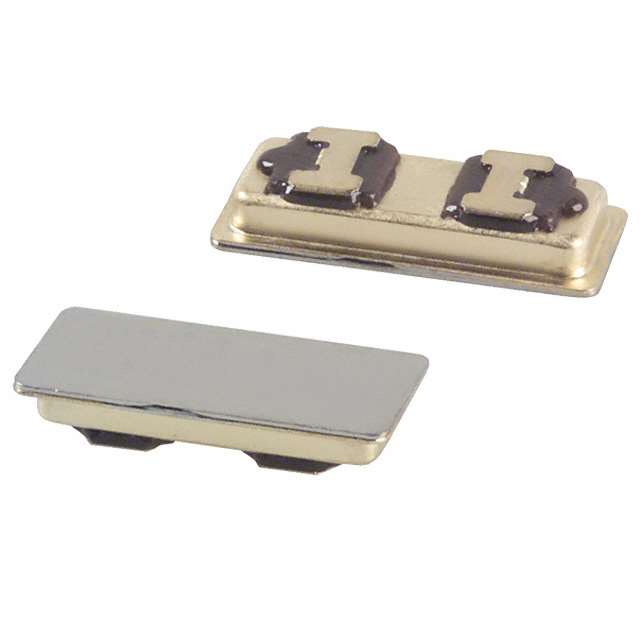

ECS-120-S-19A-TR

ECS-120-S-19A-TR

Part Number	ECS-120-S-19A-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC860TR-ND XC860CT-ND XC860DKR-ND XC860TR ECS-120-S-19A ECS120S19ATR XC860DKR XC860CT
Description	CRYSTAL 12.0000MHZ SERIES SMD
Detailed Description	12 MHz ±30ppm Crystal Series 80 Ohms 2-SMD, No Lead
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		ECX-19A
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead
Load Capacitance		Series
Size / Dimension		0.433" L x 0.197" W (11.00mm x 5.00mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.079" (2.00mm)
ESR (Equivalent Series Resistance)		80 Ohms
Frequency		12 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-120-S-19A-TR
Datasheets		Crystal Part Numbering Guide
Datasheets		ECX-19A Series Circuit
Datasheets		ECX-19A Series Footprint

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2522

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$2.39	$2.39
Total Amount: $2.39

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$1.38	$1,380.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$2.39	$2.39
10	$2.33	$23.30
50	$2.22	$111.00
100	$1.94	$194.00
500	$1.89	$945.00
