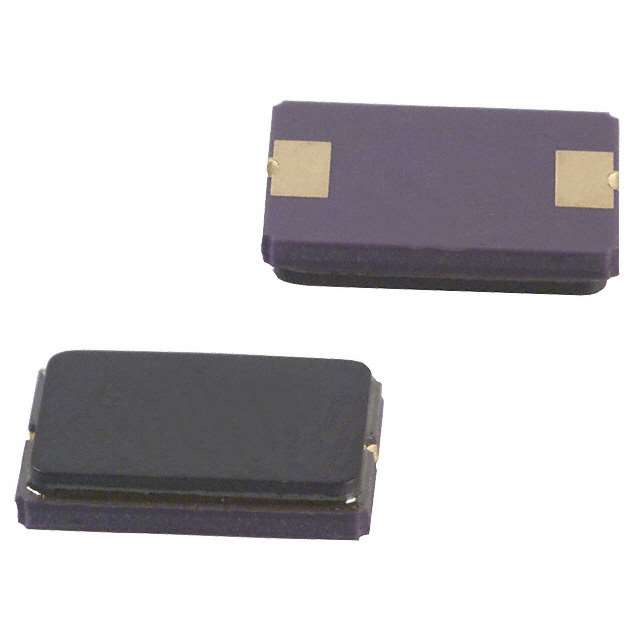

ECS-160-S-20A-TR

ECS-160-S-20A-TR

Part Number	ECS-160-S-20A-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC616TR-ND XC616CT-ND XC616DKR-ND XC616DKR XC616TR XC616CT ECS160S20ATR ECS-160-S-20A
Description	CRYSTAL 16.0000MHZ SERIES SMD
Detailed Description	16 MHz ±30ppm Crystal Series 40 Ohms 2-SMD, No Lead
Manufacturer Standard Lead Time	53 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		CSM-8A
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead
Load Capacitance		Series
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.067" (1.70mm)
ESR (Equivalent Series Resistance)		40 Ohms
Frequency		16 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-160-S-20A-TR
Datasheets		Crystal Part Numbering Guide
Datasheets		CSM-8 Series Circuit
Datasheets		CSM-8 Series Side
Datasheets		CSM-8 Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 585

Can ship immediately.
