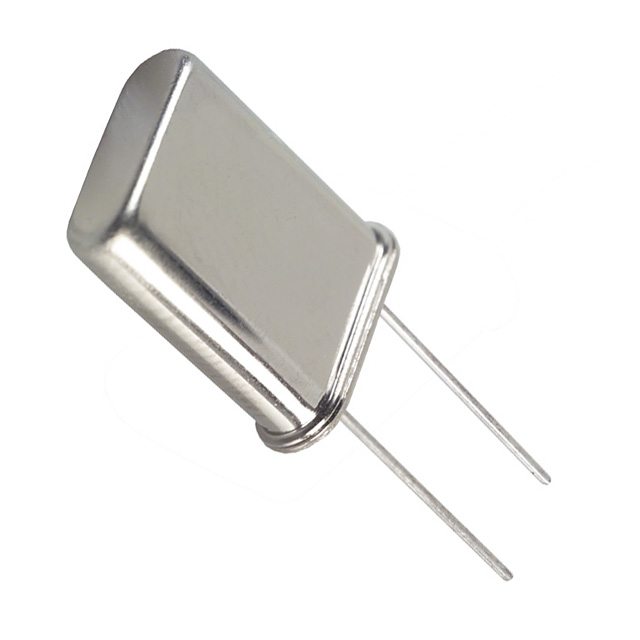

ECS-184-20-1X

ECS-184-20-1X

Part Number	ECS-184-20-1X
Manufacturer	ECS Inc. International
Other Part Numbers	X1036-ND X1036 ECS184201X
Description	CRYSTAL 18.4320MHZ 20PF TH
Detailed Description	18.432 MHz ±30ppm Crystal 20pF 20 Ohms HC-49/U
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		HC-49UX
Packaging		Bulk
Part Status		Active
Package / Case		HC-49/U
Load Capacitance		20pF
Size / Dimension		0.447" L x 0.183" W (11.35mm x 4.65mm)
Mounting Type		Through Hole
Type		MHz Crystal
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.530" (13.46mm)
ESR (Equivalent Series Resistance)		20 Ohms
Frequency		18.432 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-184-20-1X
Datasheets		Crystal Part Numbering Guide
Datasheets		HC-49U Series Bottom
Datasheets		HC-49U Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 821

Can ship immediately.
