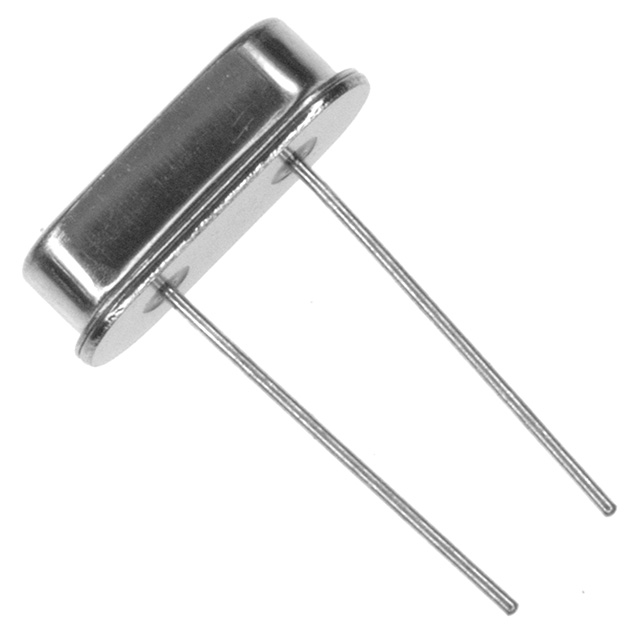

ECS-200-20-4XDN

ECS-200-20-4XDN

Part Number	ECS-200-20-4XDN
Manufacturer	ECS Inc. International
Other Part Numbers	X1121-ND ECS200204XDN X1121
Description	CRYSTAL 20.0000MHZ 20PF TH
Detailed Description	20 MHz ±30ppm Crystal 20pF 30 Ohms HC-49/US
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		HC-49USX-DN
Packaging		Bulk
Part Status		Active
Package / Case		HC-49/US
Load Capacitance		20pF
Size / Dimension		0.447" L x 0.183" W (11.35mm x 4.65mm)
Mounting Type		Through Hole
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±100ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.138" (3.50mm)
ESR (Equivalent Series Resistance)		30 Ohms
Frequency		20 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-200-20-4XDN
Datasheets		Crystal Part Numbering Guide
Datasheets		HC-49US Series Bottom
Datasheets		HC-49US Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 543

Can ship immediately.
