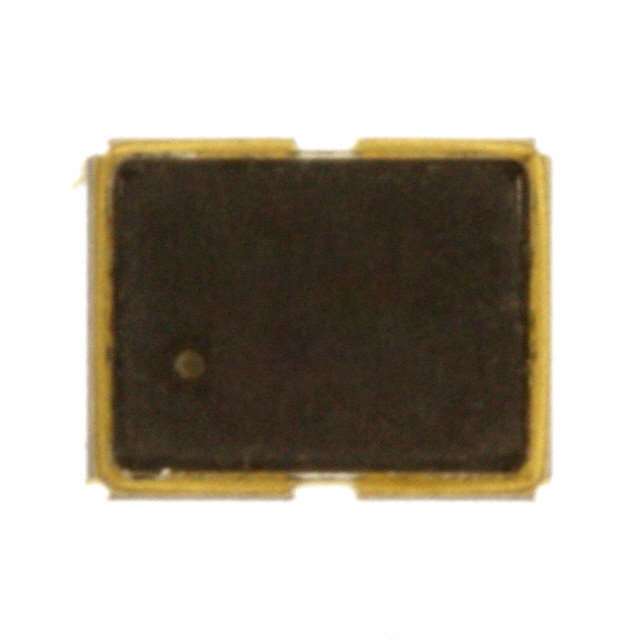

ECS-2532VXO-540B-2.8

ECS-2532VXO-540B-2.8

Part Number	ECS-2532VXO-540B-2.8
Manufacturer	ECS Inc. International
Other Part Numbers	XC1488TR-ND XC1488CT-ND XC1488DKR-ND XC1488TR XC1488CT ECS2532VXO540B28 XC1488DKR
Description	XTAL OSC VCXO 54.0000MHZ CMOS
Detailed Description	54 MHz VCXO CMOS Oscillator 2.8V 4-SMD, No Lead
Manufacturer Standard Lead Time	25 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-2532VXO
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Output		CMOS
Type		VCXO
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±30ppm
Voltage - Supply		2.8V
Current - Supply (Max)		5mA
Height - Seated (Max)		0.039" (1.00mm)
Frequency		54 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-2532VXO-540B-2.8
Datasheets		ECS-2532VXO-xx0B-2.8 Bottom
Datasheets		ECS-2532VXO-xx0B-2.8 Side
Datasheets		ECS-2532VXO-xx0B-2.8 Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 410

Can ship immediately.
