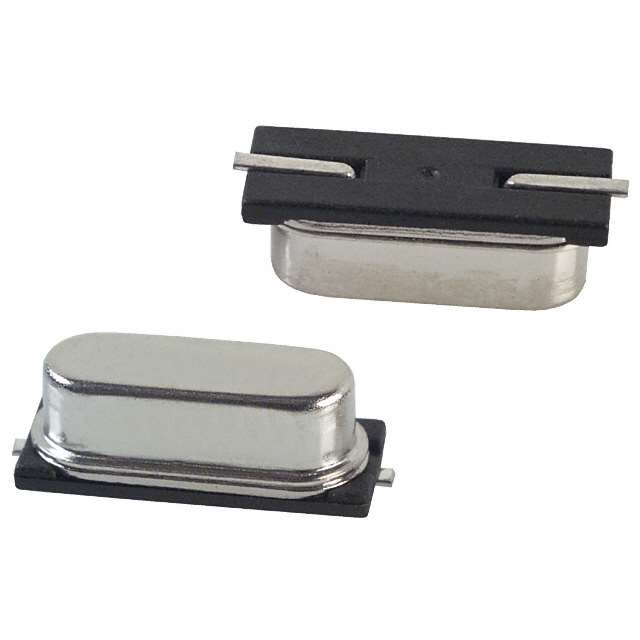

ECS-282.594-CDX-0385

ECS-282.594-CDX-0385

Part Number	ECS-282.594-CDX-0385
Manufacturer	ECS Inc. International
Other Part Numbers	XC1369-ND XC1369 ECS282.594CDX0385
Description	CRYSTAL 28.2594MHZ 12PF SMD
Detailed Description	28.2594 MHz ±20ppm Crystal 12pF 30 Ohms HC-49/US
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		CSM-7
Packaging		Bulk
Part Status		Active
Package / Case		HC-49/US
Load Capacitance		12pF
Size / Dimension		0.449" L x 0.189" W (11.40mm x 4.80mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±30ppm
Frequency Tolerance		±20ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.169" (4.30mm)
ESR (Equivalent Series Resistance)		30 Ohms
Frequency		28.2594 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-282.594-CDX-0385
Datasheets		Crystal Numbering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 535

Can ship immediately.
