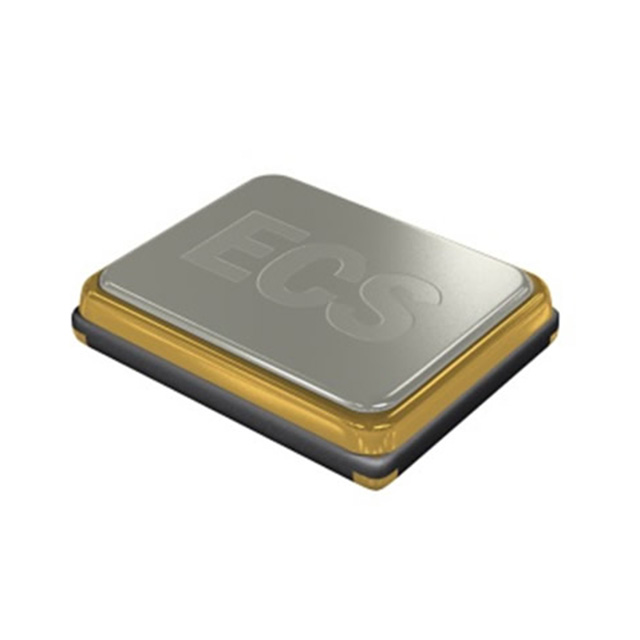

ECS-320-16-33B-CKM-TR

ECS-320-16-33B-CKM-TR

Part Number	ECS-320-16-33B-CKM-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC2531TR-ND XC2531CT-ND XC2531DKR-ND XC2531CT XC2531TR XC2531DKR
Description	CRYSTAL 32.0000MHZ 16PF SMD
Detailed Description	32 MHz ±10ppm Crystal 16pF 40 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		ECS-33B
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		16pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±10ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		40 Ohms
Frequency		32 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-320-16-33B-CKM-TR
Datasheets		Crystal Numbering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1933

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.61	$0.61
Total Amount: $0.61

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$0.32	$320.00
3,000	$0.30	$900.00
5,000	$0.29	$1,450.00
10,000	$0.28	$2,800.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.61	$0.61
10	$0.51	$5.10
50	$0.45	$22.50
100	$0.40	$40.00
500	$0.38	$190.00
