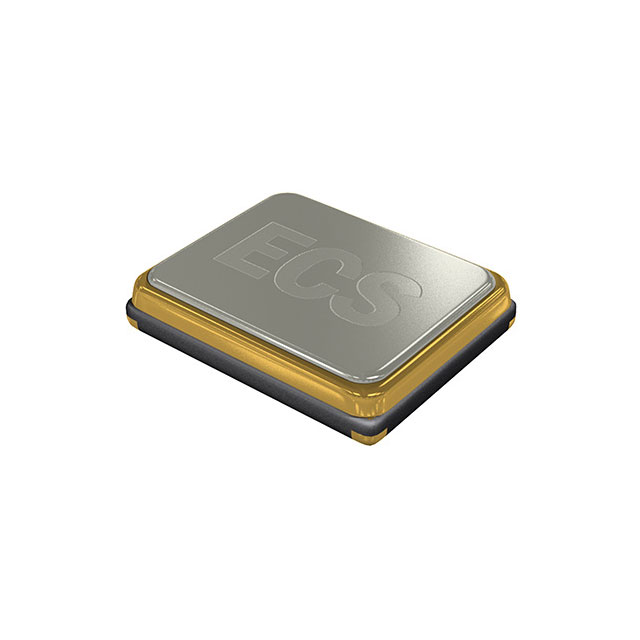

ECS-320-6-37B2-CKM-TR

ECS-320-6-37B2-CKM-TR

Part Number	ECS-320-6-37B2-CKM-TR
Manufacturer	ECS Inc. International
Other Part Numbers	50-ECS-320-6-37B2-CKM-TR-ND 50-ECS-320-6-37B2-CKM-TRCT-ND 50-ECS-320-6-37B2-CKM-TRDKR-ND 50-ECS-320-6-37B2-CKM-TR 50-ECS-320-6-37B2-CKM-TRCT 50-ECS-320-6-37B2-CKM-TRDKR
Description	CRYSTAL 32 MHZ 6PF SMD
Detailed Description	32 MHz ±10ppm Crystal 6pF 50 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		ECX-1637B2
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		6pF
Size / Dimension		0.079" L x 0.063" W (2.00mm x 1.60mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±10ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.020" (0.50mm)
ESR (Equivalent Series Resistance)		50 Ohms
Frequency		32 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-320-6-37B2-CKM-TR
Datasheets		Crystal Numbering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 9758

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.45	$0.45
Total Amount: $0.45

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
3,000	$0.23	$690.00
6,000	$0.22	$1,320.00
15,000	$0.21	$3,150.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.45	$0.45
10	$0.38	$3.80
50	$0.34	$17.00
100	$0.30	$30.00
500	$0.29	$145.00
1,000	$0.24	$240.00
