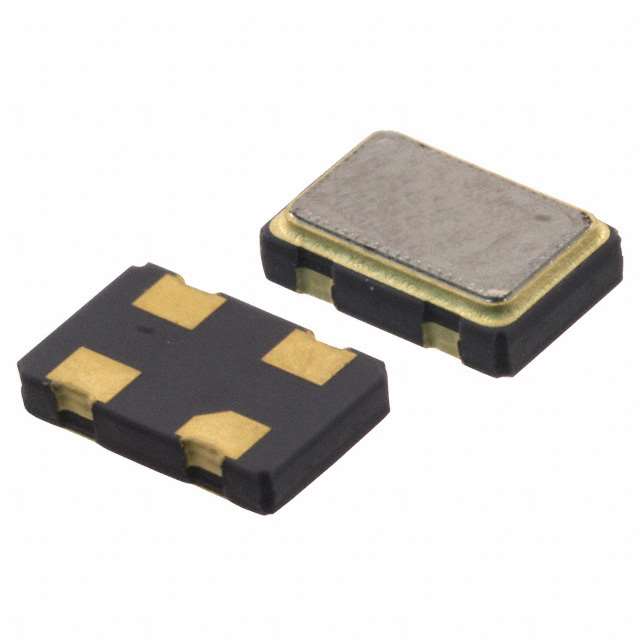

ECS-3518-143-B-TR

ECS-3518-143-B-TR

Part Number	ECS-3518-143-B-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC1070TR-ND XC1070CT-ND XC1070DKR-ND XC1070CT ECS3518143BTR XC1070DKR XC1070TR
Description	XTAL OSC XO 14.31818MHZ HCMOS
Detailed Description	14.31818 MHz XO (Standard) HCMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-3518
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Output		HCMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		0°C ~ 70°C
Frequency Stability		±50ppm
Voltage - Supply		1.8V
Current - Supply (Max)		7mA
Height - Seated (Max)		0.051" (1.30mm)
Frequency		14.31818 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-3518-143-B-TR
Datasheets		ECS-(3518,3525) Series Side
Datasheets		ECS-(3518,3525,3963) Series Bottom
Datasheets		ECS-(3518,3525,3963) Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 204

Can ship immediately.
