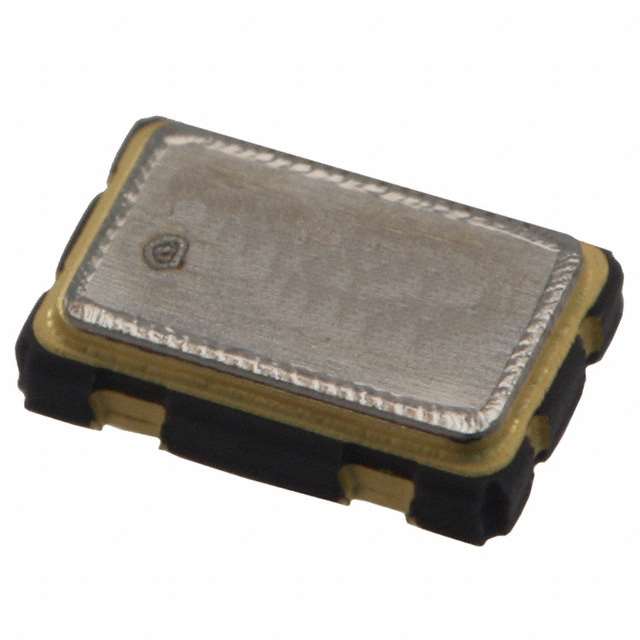

ECS-3525-200-B-TR

ECS-3525-200-B-TR

Part Number	ECS-3525-200-B-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC1052TR-ND XC1052CT-ND XC1052DKR-ND XC1052DKR XC1052TR XC1052CT ECS3525200BTR
Description	XTAL OSC XO 20.0000MHZ HCMOS SMD
Detailed Description	20 MHz XO (Standard) HCMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-3525
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Output		HCMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		0°C ~ 70°C
Frequency Stability		±50ppm
Voltage - Supply		2.5V
Current - Supply (Max)		8mA
Height - Seated (Max)		0.051" (1.30mm)
Frequency		20 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-3525-200-B-TR
Datasheets		ECS-(3518,3525,3963) Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 219

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$1.22	$1.22
Total Amount: $1.22

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$1.60	$1,600.00
3,000	$1.49	$4,470.00
5,000	$1.43	$7,150.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.22	$1.22
10	$1.08	$10.80
50	$1.01	$50.50
100	$0.89	$89.00
500	$0.85	$425.00
