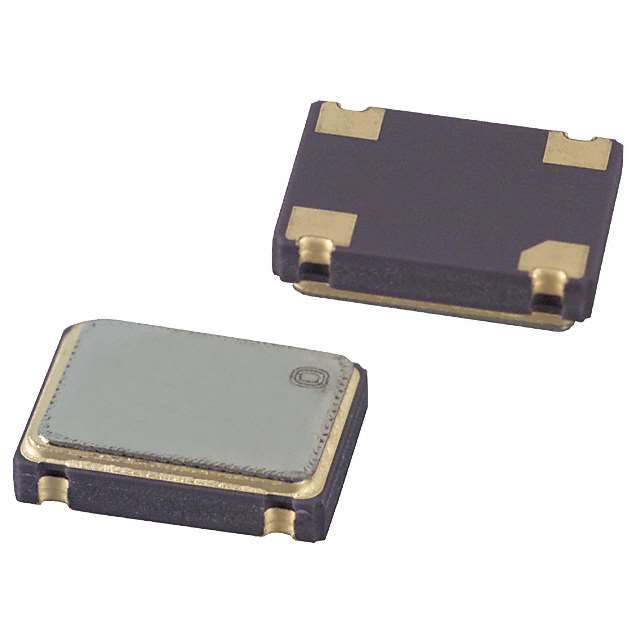

ECS-3951M-100-BN-TR

ECS-3951M-100-BN-TR

Part Number	ECS-3951M-100-BN-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC296TR-ND XC296CT-ND XC296DKR-ND XC296CT Q4010410 XC296TR ECS3951M100BNTR XC296DKR
Description	XTAL OSC XO 10.0000MHZ HCMOS SMD
Detailed Description	10 MHz XO (Standard) HCMOS Oscillator 5V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-3951M-BN
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		HCMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±50ppm
Voltage - Supply		5V
Current - Supply (Max)		20mA
Height - Seated (Max)		0.067" (1.70mm)
Frequency		10 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-3951M-100-BN-TR
Datasheets		ECS-391(5,3) Series Bottom
Datasheets		ECS-391(5,3) Series Side
Datasheets		ECS-391(5,3) Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 7550

Can ship immediately.
