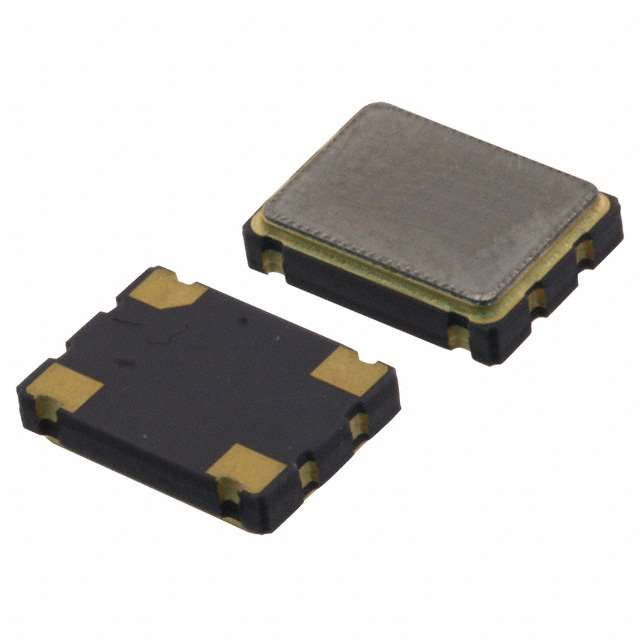

ECS-3953M-800-BN-TR

ECS-3953M-800-BN-TR

Part Number	ECS-3953M-800-BN-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC344TR-ND XC344CT-ND XC344DKR-ND XC344TR XC344DKR XC344CT ECS3953M800BNTR
Description	XTAL OSC XO 80.0000MHZ HCMOS SMD
Detailed Description	80 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-3953M-BN
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		HCMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±50ppm
Voltage - Supply		3.3V
Current - Supply (Max)		30mA
Height - Seated (Max)		0.067" (1.70mm)
Frequency		80 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-3953M-800-BN-TR
Datasheets		ECS-391(5,3) Series Top
Datasheets		ECS-391(5,3) Series Bottom
Datasheets		ECS-391(5,3) Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 8527

Can ship immediately.
