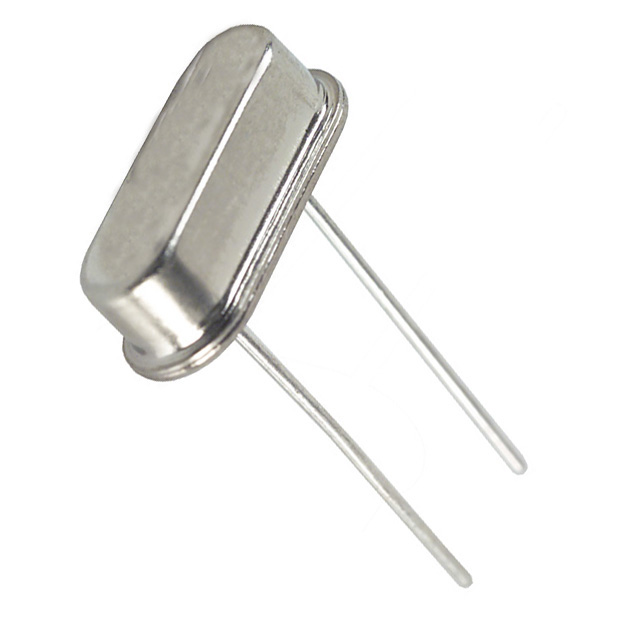

ECS-76.8-20-4

ECS-76.8-20-4

Part Number	ECS-76.8-20-4
Manufacturer	ECS Inc. International
Other Part Numbers	X163-ND ECS-076.8-20-4 ECS76.8204 X163
Description	CRYSTAL 7.6800MHZ 20PF TH
Detailed Description	7.68 MHz ±30ppm Crystal 20pF 80 Ohms HC-49/US
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		HC-49US
Packaging		Bulk
Part Status		Active
Package / Case		HC-49/US
Load Capacitance		20pF
Size / Dimension		0.447" L x 0.183" W (11.35mm x 4.65mm)
Mounting Type		Through Hole
Type		MHz Crystal
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.138" (3.50mm)
ESR (Equivalent Series Resistance)		80 Ohms
Frequency		7.68 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-76.8-20-4
Datasheets		Crystal Part Numbering Guide
Datasheets		HC-49US Series Bottom

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
