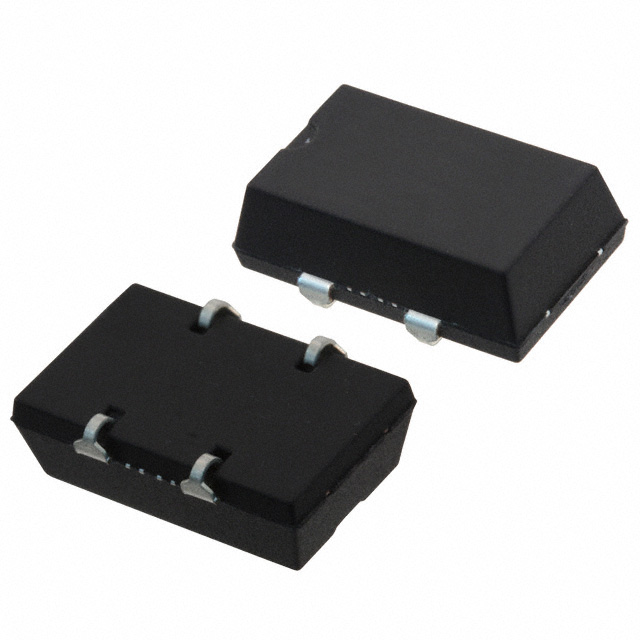

ECS-8FMX-147.4-TR

ECS-8FMX-147.4-TR

Part Number	ECS-8FMX-147.4-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC1624TR-ND XC1624CT-ND XC1624DKR-ND XC1624CT XC1624TR ECS8FMX147.4TR XC1624DKR
Description	XTAL OSC XO 14.7456MHZ CMOS TTL
Detailed Description	14.7456 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Manufacturer Standard Lead Time	41 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-8FX
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SOJ, 5.08mm pitch
Size / Dimension		0.551" L x 0.341" W (14.00mm x 8.65mm)
Mounting Type		Surface Mount
Output		CMOS, TTL
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±200ppm
Voltage - Supply		5V
Current - Supply (Max)		23mA
Height - Seated (Max)		0.185" (4.70mm)
Frequency		14.7456 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-8FMX-147.4-TR
Datasheets		Mult Devs Retraction 03/Feb/2021
Datasheets		ECS-8F Series Bottom

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3134

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$4.23	$4.23
Total Amount: $4.23

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$2.82	$2,820.00
3,000	$2.62	$7,860.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$4.23	$4.23
10	$4.03	$40.30
50	$3.83	$191.50
100	$3.43	$343.00
500	$3.22	$1,610.00
