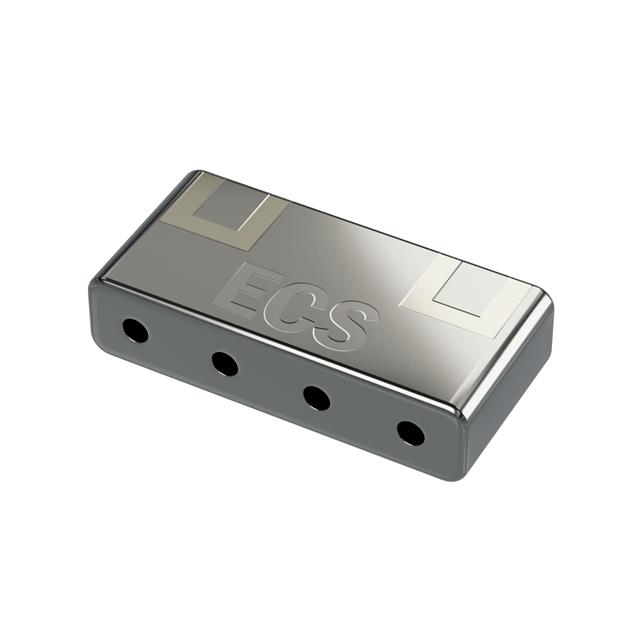

ECS-DCF-101

ECS-DCF-101

Part Number	ECS-DCF-101
Manufacturer	ECS Inc. International
Other Part Numbers	50-ECS-DCF-101TR-ND 50-ECS-DCF-101CT-ND 50-ECS-DCF-101DKR-ND 50-ECS-DCF-101TR 50-ECS-DCF-101CT 50-ECS-DCF-101DKR
Description	CER FIL 5235 MHZ BAND PASS FIL
Detailed Description	5.235GHz Center Band Pass Ceramic Filter 180 MHz 50Ohm 3-SMD, No Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Ceramic Filters
Manufacturer		ECS Inc. International
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		3-SMD, No Lead
Filter Type		Band Pass
Size / Dimension		0.339" L x 0.197" W (8.60mm x 5.00mm)
Impedance		50Ohm
Mounting Type		Surface Mount
Frequency		5.235GHz Center
Insertion Loss		2.5dB
Height (Max)		0.118" (3.00mm)
Bandwidth		180 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-DCF-101

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8543.70.9860
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 71

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$1.12	$1.12
Total Amount: $1.12

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
2,000	$0.56	$1,120.00
4,000	$0.53	$2,120.00
6,000	$0.51	$3,060.00
10,000	$0.49	$4,900.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.12	$1.12
10	$0.82	$8.20
25	$0.80	$20.00
50	$0.78	$39.00
100	$0.71	$71.00
250	$0.69	$172.50
500	$0.60	$300.00
1,000	$0.56	$560.00
