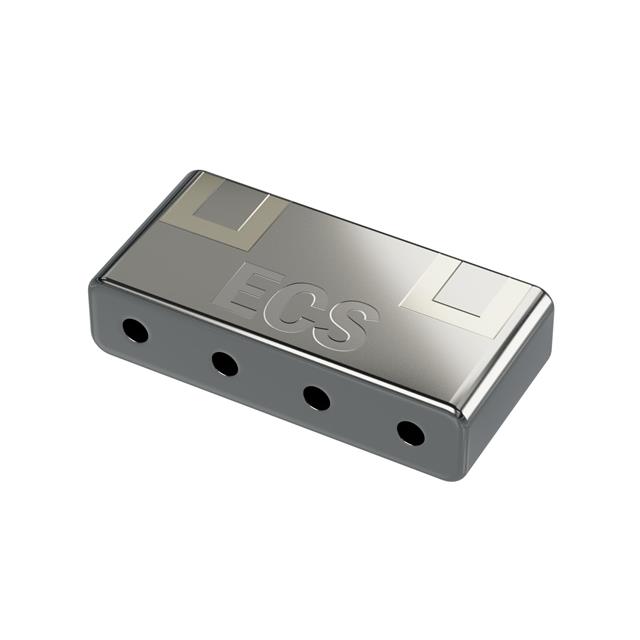

ECS-DCF-104

ECS-DCF-104

Part Number	ECS-DCF-104
Manufacturer	ECS Inc. International
Other Part Numbers	50-ECS-DCF-104TR-ND 50-ECS-DCF-104CT-ND 50-ECS-DCF-104DKR-ND 50-ECS-DCF-104CT 50-ECS-DCF-104DKR 50-ECS-DCF-104TR
Description	CER FIL 5245 MHZ BAND PASS FIL
Detailed Description	5.245GHz Center Band Pass Ceramic Filter 190 MHz 50Ohm 3-SMD, No Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Ceramic Filters
Manufacturer		ECS Inc. International
Series		ECS-DCF
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		3-SMD, No Lead
Filter Type		Band Pass
Size / Dimension		0.339" L x 0.197" W (8.60mm x 5.00mm)
Impedance		50Ohm
Mounting Type		Surface Mount
Frequency		5.245GHz Center
Insertion Loss		2.5dB
Height (Max)		0.118" (3.00mm)
Bandwidth		190 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-DCF-104

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8543.70.9860
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 60

Can ship immediately.
