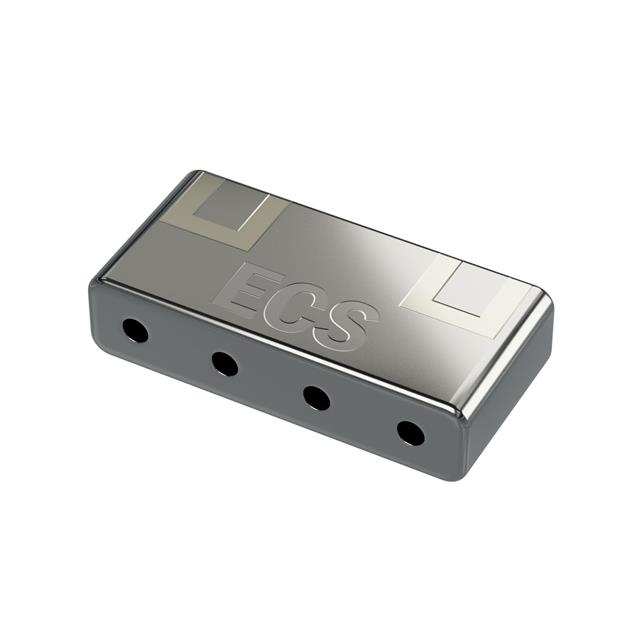

ECS-DCF-106

ECS-DCF-106

Part Number	ECS-DCF-106
Manufacturer	ECS Inc. International
Other Part Numbers	50-ECS-DCF-106TR-ND 50-ECS-DCF-106CT-ND 50-ECS-DCF-106DKR-ND 50-ECS-DCF-106TR 50-ECS-DCF-106DKR 50-ECS-DCF-106CT
Description	CER FIL 5492.5 MHZ BAND PASS FIL
Detailed Description	5.4925GHz Center Band Pass Ceramic Filter 685 MHz 50Ohm 3-SMD, No Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Ceramic Filters
Manufacturer		ECS Inc. International
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		3-SMD, No Lead
Filter Type		Band Pass
Size / Dimension		0.504" L x 0.209" W (12.80mm x 5.30mm)
Impedance		50Ohm
Mounting Type		Surface Mount
Frequency		5.4925GHz Center
Insertion Loss		3dB
Height (Max)		0.150" (3.80mm)
Bandwidth		685 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-DCF-106

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8543.70.9860
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 70

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$2.24	$2.24
Total Amount: $2.24

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
800	$1.20	$960.00
1,600	$1.12	$1,792.00
4,000	$1.07	$4,280.00
5,600	$1.03	$5,768.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$2.24	$2.24
10	$1.64	$16.40
25	$1.61	$40.25
50	$1.57	$78.50
100	$1.42	$142.00
250	$1.38	$345.00
