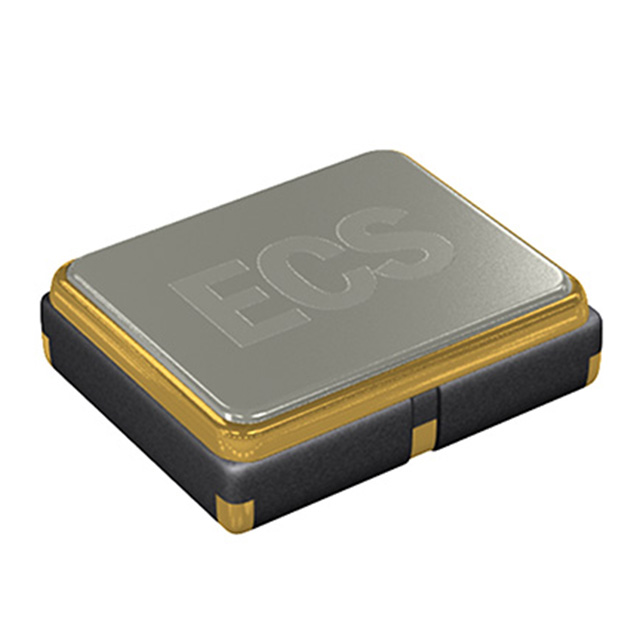

ECS-TXO-2520-33-240-AN-TR

ECS-TXO-2520-33-240-AN-TR

Part Number	ECS-TXO-2520-33-240-AN-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC2257TR-ND XC2257CT-ND XC2257DKR-ND XC2257CT XC2257DKR XC2257TR
Description	XTAL OSC TCXO 24.0000MHZ HCMOS
Detailed Description	24 MHz TCXO HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-TXO-2520
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type		Surface Mount
Output		HCMOS
Function		Enable/Disable
Type		TCXO
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±2.5ppm
Voltage - Supply		3.3V
Current - Supply (Max)		5.5mA
Current - Supply (Disable) (Max)		10µA
Height - Seated (Max)		0.039" (1.00mm)
Frequency		24 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-TXO-2520-33-240-AN-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 30706

Can ship immediately.
