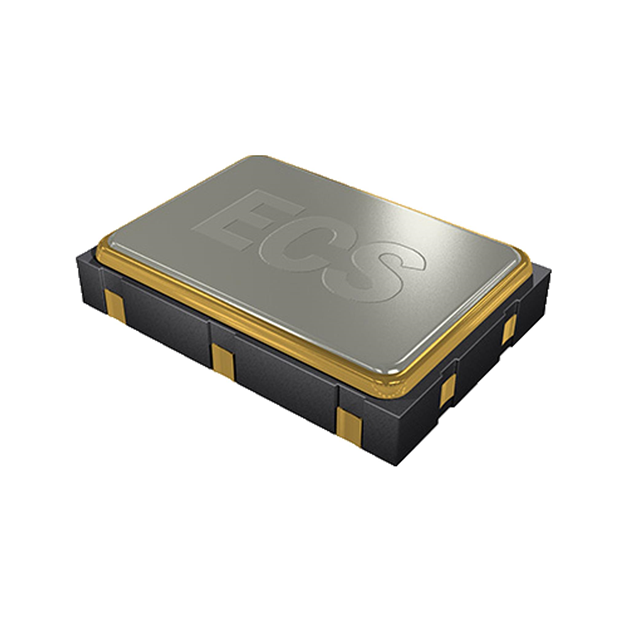

ECX-L25BN-12.800

ECX-L25BN-12.800

Part Number	ECX-L25BN-12.800
Manufacturer	ECS Inc. International
Other Part Numbers	ECX-L25BN-12.800-ND
Description	XTAL OSC XO 12.8000MHZ LVDS SMD
Detailed Description	12.8 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECX-L ECSpressCON™
Packaging		Strip
Part Status		Active
Package / Case		6-SMD, No Lead
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Output		LVDS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±50ppm
Voltage - Supply		2.5V
Current - Supply (Max)		18mA
Height - Seated (Max)		0.051" (1.30mm)
Frequency		12.8 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECX-L25BN-12.800

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
