EFR32ZG23B020F512IM48-B

Part Number
EFR32ZG23B020F512IM48-B
Manufacturer Silicon Labs
Other Part Numbers
336-EFR32ZG23B020F512IM48-B-ND
336-EFR32ZG23B020F512IM48-B
Description ZG23, SUB-GHZ, 512KB FLASH, 64KB
Detailed Description IC RF TxRx + MCU General ISM < 1GHz Z-Wave® 863MHz ~ 870MHz, 902MHz ~ 928MHz 48-VFQFN Exposed Pad
Datasheet Datasheet

Product Attributes

Category
Manufacturer Silicon Labs
Series
Packaging
Tube
Part Status Not For New Designs

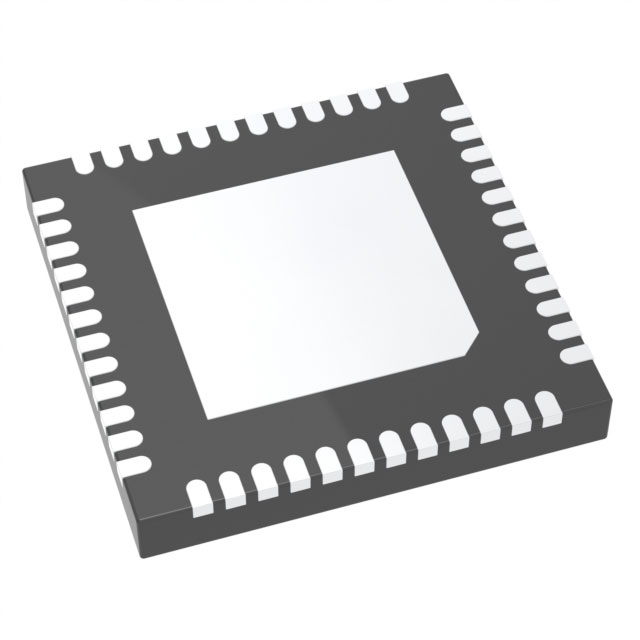

Package / Case 48-VFQFN Exposed Pad
Sensitivity -110dBm
Mounting Type Surface Mount
Frequency 863MHz ~ 870MHz, 902MHz ~ 928MHz
Memory Size 512kB Flash, 64kB RAM
Type TxRx + MCU
Operating Temperature -40°C ~ 125°C (TA)
Voltage - Supply 1.71V ~ 3.8V
Power - Output 20dBm
Protocol Z-Wave®
Current - Receiving 6.8mA ~ 7.6mA
Data Rate (Max) 100kbps
Current - Transmitting 16mA ~ 41.3mA
Supplier Device Package 48-QFN (6x6)
GPIO 31
Modulation 2FSK, 2GFSK, DSSS, O-QPSK
RF Family/Standard General ISM < 1GHz
Serial Interfaces ADC, GPIO, I2C, I2S, SPI, IrDA, UART
DigiKey Programmable Not Verified

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 5A992C
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 831

Can ship immediately.
Not recommended for new design, minimums may apply.
