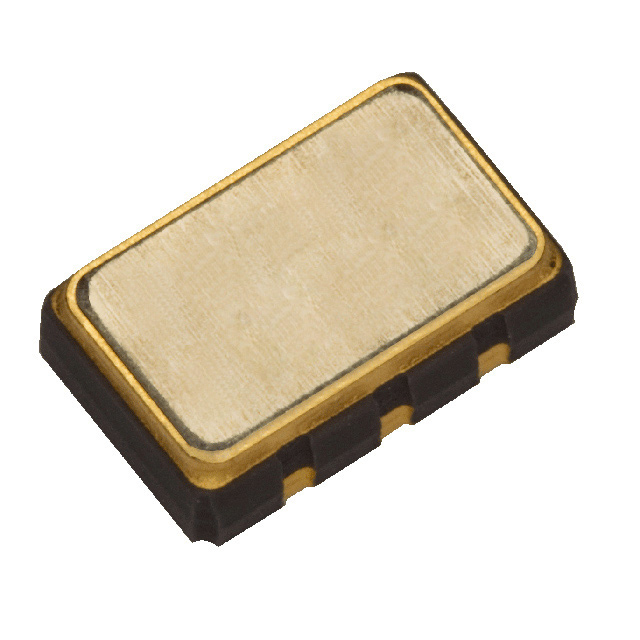

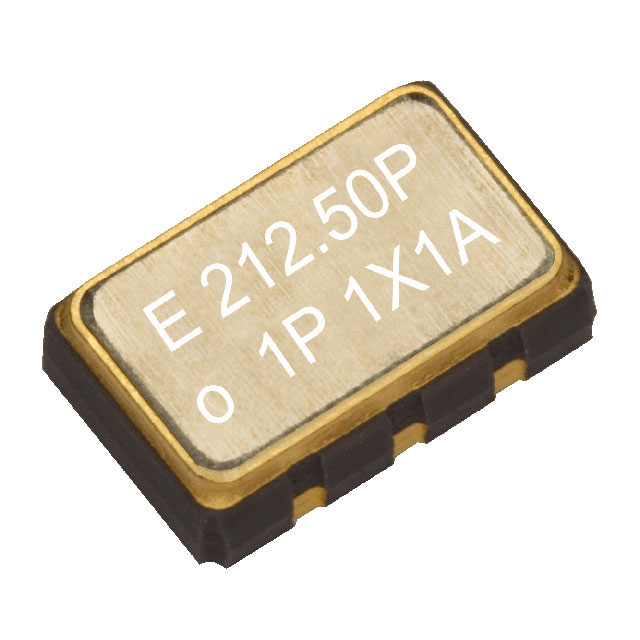

EG-2102CB 133.0000M-PGPAL0

EG-2102CB 133.0000M-PGPAL0

Part Number	EG-2102CB 133.0000M-PGPAL0
Manufacturer	Epson
Other Part Numbers	EG-2102CB133.0000M-PGPAL0-ND EG-2102CB133.0000M-PGPAL0 EG-2102CB 133.0000M-PGPAL0-ND X1M000201000300
Description	XTAL OSC SO 133.0000MHZ LVPECL
Detailed Description	133 MHz SO (SAW) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Manufacturer Standard Lead Time	18 weeks

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Epson
Series		EG-2102CB
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		6-SMD, No Lead
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Output		LVPECL
Function		Enable/Disable
Type		SO (SAW)
Operating Temperature		0°C ~ 70°C
Voltage - Supply		3.3V
Current - Supply (Max)		60mA
Current - Supply (Disable) (Max)		2mA
Height - Seated (Max)		0.061" (1.55mm)
Frequency		133 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		EG21xxCA Series Bottom
Datasheets		EG21xxCA Series Footprint
Datasheets		EG21xxCA Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
