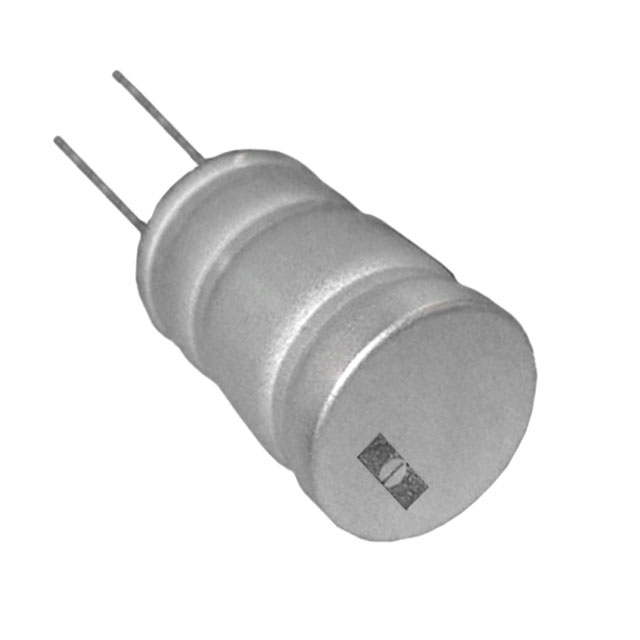

EGVD630ELL132MM30H _ Aluminum Electrolytic Capacitors_Capacitors

Part Number	EGVD630ELL132MM30H
Manufacturer	United Chemi-Con
Other Part Numbers	565-4430-ND 565-4430
Description	CAP ALUM 1300UF 20% 63V RADIAL
Detailed Description	1300 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 29mOhm @ 100kHz 2000 Hrs @ 135°C
Manufacturer Standard Lead Time	28 weeks

Category		Capacitors Aluminum Electrolytic Capacitors
Manufacturer		United Chemi-Con
Series		GVD
Packaging		Bulk
Part Status		Active
Tolerance		±20%
Package / Case		Radial, Can
Size / Dimension		0.709" Dia (18.00mm)
Polarization		Polar
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 135°C
Applications		Automotive
Lead Spacing		0.295" (7.50mm)
Ratings		AEC-Q200
ESR (Equivalent Series Resistance)		29mOhm @ 100kHz
Lifetime @ Temp.		2000 Hrs @ 135°C
Height - Seated (Max)		1.240" (31.50mm)
Capacitance		1300 µF
Voltage - Rated		63 V
Ripple Current @ Low Frequency		2.358 A @ 120 Hz
Ripple Current @ High Frequency		3.93 A @ 100 kHz

RESOURCE TYPE		LINK
Datasheets		EGVD630ELL132MM30H

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8532.22.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
