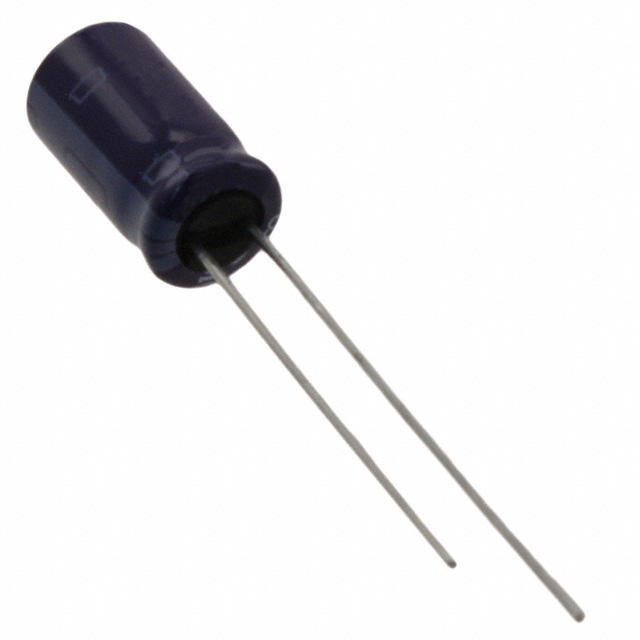

ELXZ250ELL101MFB5D

Part Number
ELXZ250ELL101MFB5D
Manufacturer United Chemi-Con
Other Part Numbers
565-1952-ND
565-1952
Description CAP ALUM 100UF 20% 25V RADIAL
Detailed Description 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Manufacturer Standard Lead Time 22 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer United Chemi-Con
Series
LXZ
Packaging
Bulk
Part Status Active
Tolerance ±20%
Package / Case Radial, Can
Size / Dimension 0.248" Dia (6.30mm)
Polarization Polar
Mounting Type Through Hole
Operating Temperature -55°C ~ 105°C
Applications Automotive
Lead Spacing 0.098" (2.50mm)
Ratings AEC-Q200
Lifetime @ Temp. 2000 Hrs @ 105°C
Height - Seated (Max) 0.512" (13.00mm)
Capacitance 100 µF
Voltage - Rated 25 V
Impedance 250 mOhms
Ripple Current @ Low Frequency 116 mA @ 120 Hz
Ripple Current @ High Frequency 290 mA @ 100 kHz

Documents & Media

RESOURCE TYPE LINK
Datasheets ELXZ250ELL101MFB5D
Datasheets LXZ Series Bottom_2.5
Datasheets LXZ Series_6.3 x 11.5

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8532.22.0020
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
