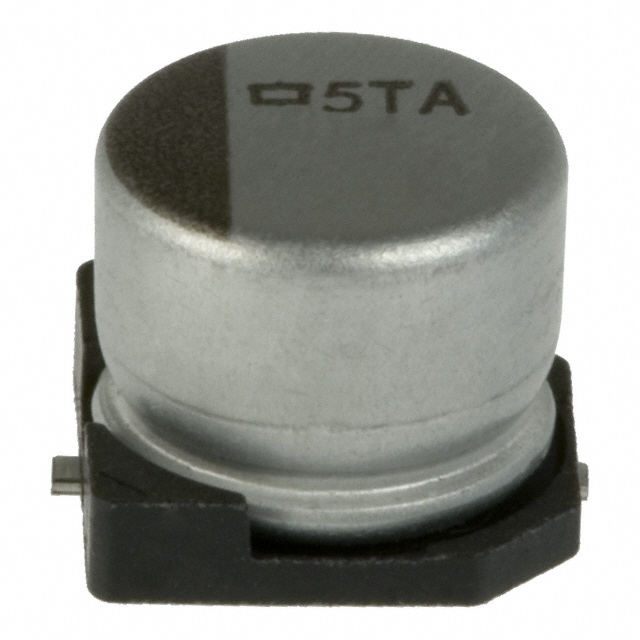

EMVA250ADA560MF55G

EMVA250ADA560MF55G

Part Number	EMVA250ADA560MF55G
Manufacturer	United Chemi-Con
Other Part Numbers	565-2104-2-ND 565-2104-1-ND 565-2104-6-ND 565-2104-6 565-2104-2 565-2104-1
Description	CAP ALUM 56UF 20% 25V SMD
Detailed Description	56 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet	Datasheet

Product Attributes

Category		Capacitors Aluminum Electrolytic Capacitors
Manufacturer		United Chemi-Con
Series		Alchip™- MVA
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Last Time Buy
Tolerance		±20%
Package / Case		Radial, Can - SMD
Size / Dimension		0.248" Dia (6.30mm)
Polarization		Polar
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Applications		General Purpose
Lifetime @ Temp.		2000 Hrs @ 85°C
Surface Mount Land Size		0.260" L x 0.260" W (6.60mm x 6.60mm)
Height - Seated (Max)		0.205" (5.20mm)
Capacitance		56 µF
Voltage - Rated		25 V
Ripple Current @ Low Frequency		66 mA @ 120 Hz
Ripple Current @ High Frequency		71.28 mA @ 100 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		EMVA250ADA560MF55G
Datasheets		MVA Series Jun/2022
Datasheets		F55, F60, F61, F80 Bottom
Datasheets		F55_6.3 x 5.2

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8532.22.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
