EN3L6FX _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	EN3L6FX
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC275-ND SC275
Description	CONN RCPT FMALE 6P GOLD SLDR CUP

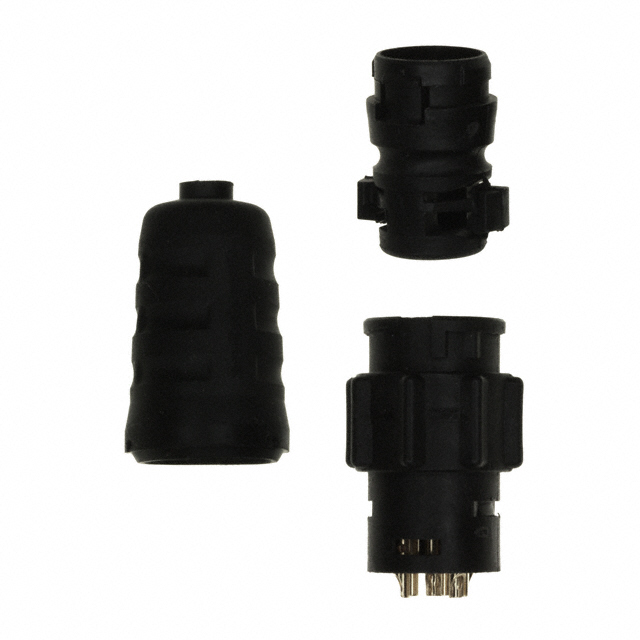

Detailed Description	6 Position Circular Connector Receptacle, Female Sockets Solder Cup
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		Switchcraft / Conxall
Series		EN3®
Packaging		Bulk
Part Status		Active
Features		Backshell, Cable Clamp
Connector Type		Receptacle, Female Sockets
Color		Black
Voltage Rating		250VAC/DC
Current Rating (Amps)		7.5A
Mounting Type		Free Hanging (In-Line)
Shielding		Unshielded
Number of Positions		6
Orientation		Keyed
Operating Temperature		-40°C ~ 65°C
Applications		General Purpose, Instrumentation, Marine, Medical
Fastening Type		Bayonet Lock
Termination		Solder Cup
Ingress Protection		IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Cable Opening		0.160" ~ 0.265" (4.06mm ~ 6.73mm)
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Contact Finish - Mating		Gold
Shell Material		Thermoplastic
Insert Material		Elastomer
Backshell Material, Plating		Thermoplastic
Primary Material		Plastic

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
