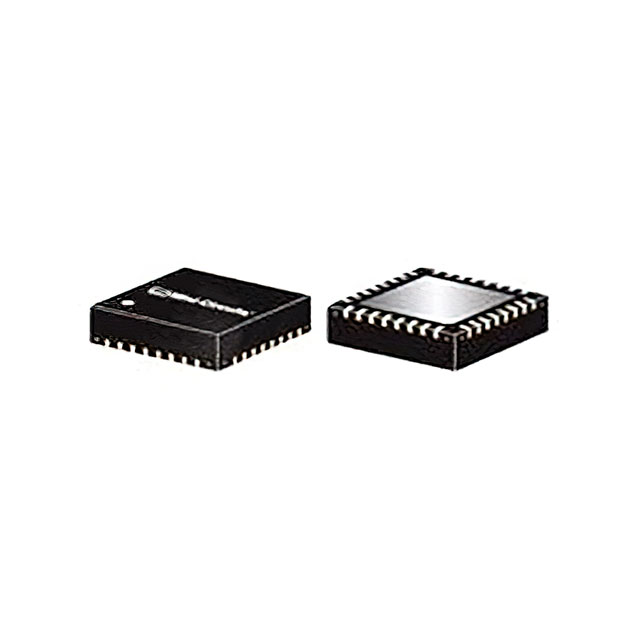

EP2W+

EP2W+

Part Number	EP2W+
Manufacturer	Mini-Circuits
Other Part Numbers	3157-EP2W+TR-ND 3157-EP2W+CT-ND 3157-EP2W+DKR-ND 3157-EP2W+DKR 3157-EP2W+TR 3157-EP2W+CT
Description	RF PWR DVDR 700MHZ-6GHZ 32VFQFN
Detailed Description	RF Power Divider 700 MHz ~ 6 GHz Isolation (Min) 16.8dB, 1.6 VSWR (Typ), 6° Imbalance (Max) 32-VFQFN Exposed Pad
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Power Dividers/Splitters
Manufacturer		Mini-Circuits
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		32-VFQFN Exposed Pad
Size / Dimension		0.197" L x 0.197" W x 0.039" H (5.00mm x 5.00mm x 1.00mm)
Insertion Loss		1.8dB
Specifications		Isolation (Min) 16.8dB, 1.6 VSWR (Typ), 6° Imbalance (Max)
Frequency		700 MHz ~ 6 GHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		EP2W+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 633

Can ship immediately.
