Part Number |
EP9315-IBZ
|
---|---|
Manufacturer | Cirrus Logic |
Other Part Numbers |
598-1263-ND
598-1263
EP9315IBZ
-598-1263
2156-EP9315-IBZ
|
Description | IC MPU EP9 200MHZ 352BGA |

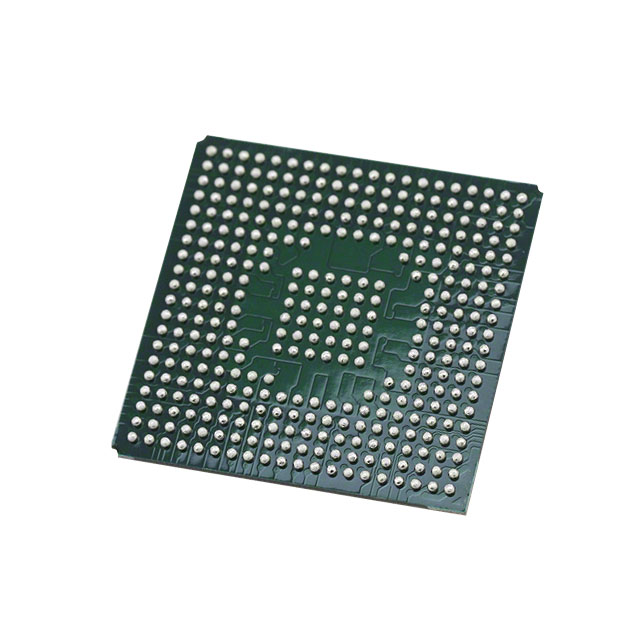

Detailed Description | ARM920T Microprocessor IC EP9 1 Core, 32-Bit 200MHz 352-PBGA (27x27) |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Cirrus Logic | |
Series |
EP9
|
|
Packaging |
Tray
|
|
Part Status | Obsolete | |
Package / Case | 352-BBGA | |
Mounting Type | Surface Mount | |
Speed | 200MHz | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Core Processor | ARM920T | |
Voltage - I/O | 1.8V, 3.3V | |
Supplier Device Package | 352-PBGA (27x27) | |
Ethernet | 1/10/100Mbps (1) | |
USB | USB 2.0 (3) | |
Number of Cores/Bus Width | 1 Core, 32-Bit | |
Co-Processors/DSP | Math Engine; MaverickCrunch™ | |
RAM Controllers | SDRAM | |
Graphics Acceleration | Yes | |
Display & Interface Controllers | Keypad, LCD, Touchscreen | |
Security Features | Hardware ID | |
Additional Interfaces | AC'97, I2S, IDE, IrDA, SPI, UART |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | EP9315-IBZ | |
Datasheets | EP93xx Guide | |
Datasheets | RoHS Certificate | |
Datasheets | Line Consolidation 29/Mar/2016 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | 3A991A2 | |
HTSUS | 8542.31.0001 | |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS Compliant |
